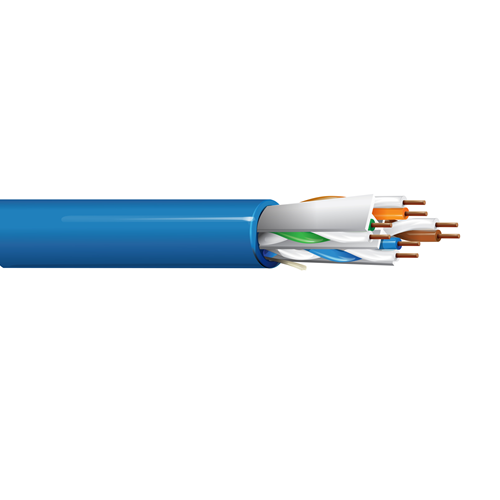

Belden 10GX13 Cable 23 AWG 4 Pairs Category 6A NonBonded-Pair Enhanced Multi Conductor Solid Bare Copper Flamarrest Jacket Cable
Select gauge from drop-down menu for prices:
- Belden Cable Category 6A Cable
- Belden 10GXS33 Cable 23 AWG 4 Pairs Category 6A Bonded-Pair Multi Conductor Solid Bare Copper Flamarrest Jacket Cable
- Belden 10GXS13 Cable 23 AWG 4 Pairs Category 6A UnBonded-Pair Multi Conductor Solid Bare Copper Flamarrest Jacket Cable
- Belden 10GXS32 Cable 23 AWG 4 Pairs Category 6A Bonded-Pair Multi Conductor Solid Bare Copper PVC Jacket Cable
- Belden 10GXS12 Cable 23 AWG 4 Pairs Category 6A UnBonded-Pair Multi Conductor Solid Bare Copper PVC Jacket Cable
- Belden 10GX63F Cable 23 AWG 4 Pairs Category 6A F/UTP Bonded-Pair Enhanced Multi Conductor Solid Bare Copper Flamarrest Jacket Cable
- Belden 10GX53F Cable 23 AWG 4 Pairs Category 6A F/UTP Non-Bonded Pair Enhanced Multi Conductor Solid Bare Copper Flamarrest Jacket Cable
- Belden 10GX62F Cable 23 AWG 4 Pairs Category 6A F/UTP Bonded-Pair Enhanced Multi Conductor Solid Bare Copper PVC Jacket Cable
- Belden 10GX52F Cable 23 AWG 4 Pairs Category 6A F/UTP NonBonded-Pair Enhanced Multi Conductor Solid Bare Copper PVC Jacket Cable
- Belden 10GX33 Cable 23 AWG 4 Pairs Category 6A Bonded-Pair Enhanced Multi Conductor Solid Bare Copper Flamarrest Jacket Cable
- Belden 10GX32 Cable 23 AWG 4 Pairs Category 6A Bonded-Pair Enhanced Multi Conductor Solid Bare Copper PVC Jacket Cable
- Belden 10GX12 Cable 23 AWG 4 Pairs Category 6A NonBonded-Pair Enhanced Multi Conductor Solid Bare Copper PVC Jacket Cable
- Belden OSP6AU Cable 23 AWG 4 Pairs Category 6A Outside Plant Multi Conductor Solid Bare Copper Polyolefin Jacket Cable
- Belden 2148A Cable 23 AWG 4 Pairs Category 6A Unbonded-Pair Multi Conductor Solid Bare Copper PVC Jacket Cable
Description:
• CAT6A (625MHz), 4-Pair, U/UTP-Unshielded, Plenum-CMP, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, FEP Insulation, Patented Double-H Spline, Ripcord, Flamarrest® Jacket.
Insulation:
• Material: FEP - Fluorinated Ethylene Propylene
Outer Jacket:
• Trade Name: Flamarrest
• Material: LS PVC - Low Smoke Polyvinyl Chloride
• Outer Jacket Ripcord: Yes
Usage (Overall):
Applications:
• Premise Horizontal Cable, 10 Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, PoE, PoE+.
Mechanical Characteristics (Overall):
• Storage Temperature Range: -20°C To +75°C
• Installation Temperature Range: +5°C To +50°C
• Operating Temperature Range: -20°C To +75°C
• Bulk Cable Weight: 38 lbs/1000 ft.
• Max. Recommended Pulling Tension: 40 lbs.
• Min. Bend Radius/Minor Axis: 1.200 in.
• Min. Bend/Installation: 3 in.
Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• Other Standards: ISO/IEC 11801 ed 2.1 (2008) Class EA
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Telecommunications Standards: Category 6A - TIA 568.C.2
Electrical Characteristics (Overall):
• Nom. Mutual Capacitance (pF/ft): 17.000
• Maximum Capacitance Unbalance (pF/100 m): 50
• Nominal Velocity of Propagation: VP (%): 68.000
• Maximum Delay (ns/100 m): 537 @ 100MHz
• Typical Delay Skew (ns/ft): 35.000
• Max. Delay Skew (ns/100 m): 45.000
• Maximum Conductor DC Resistance @ 20°C (Ohm/100 ft): 7.400
• Max. Operating Voltage - UL: 300 V RMS
• Maximum DCR Unbalanced @ 20°C (%): 3.000
Flame Test:
• UL Flame Test: NFPA 262 Plenum Flame Test (UL910)(FT6)
• C/(UL) Flame Test: FT6
• CSA Flame Test: FT6
Suitability:
• Suitability - Outdoor: No
• Suitability - Buiral: No
Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 10GX12
technical specification: | |
awg | 23 |
# pairs | 4 |
stranding | solid |
no. of conductors | 8 |
conductor material | bare copper |
outer shield - type | - |
outer shield - material | - |
overall cable - nominal diameter (in.) | 0.295 |
belden cable part number | 10GX13 |
