Vertical Cable 054-455BL-500 24 AWG 50P (Multi-pair) CAT5E Power Sum Cable 500FT Blue

Vertical Cable 054-455BL-500 24 AWG 50P (Multi-pair) CAT5E Power Sum Cable 500FT Blue

SKU: SKU:

Regular price Now $1,387.52
Regular price BEFORE   Sale price Now $1,387.52
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description

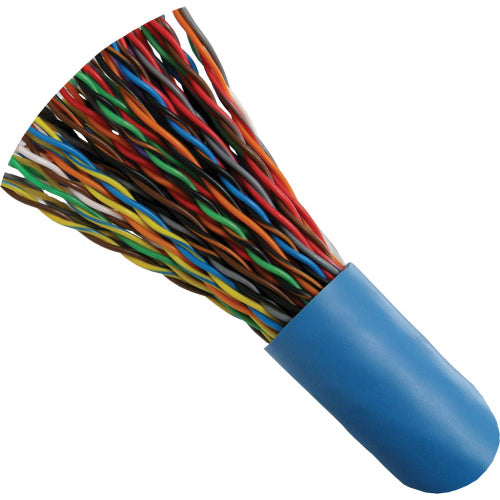

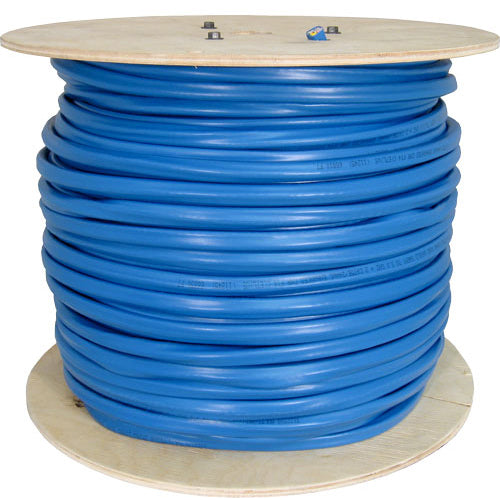

• Vertical Cable 054-455BL-500 24 AWG 50P (Multi-pair) CAT5E Power Sum Cable 500FT Blue

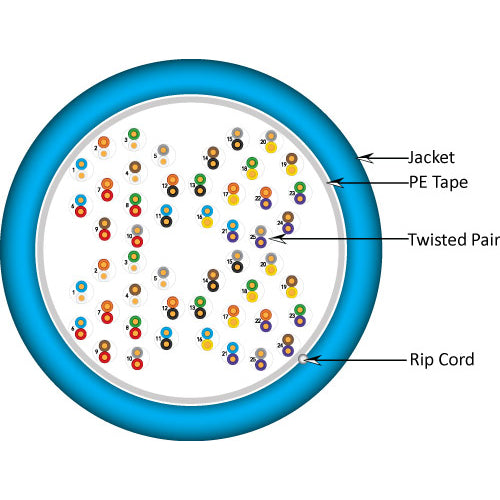

Construction
• Conductor: Soft Annealed Solid Bare Copper
• Insulation: PE
• Jacket: PVC

Features
• Gigabit Ethernet (1000Base-T)
• Video to the Desktop
• Multimedia
• High speed Voice/Data applications
• ISDN
• 55/155 Mbps ATM
• 100Base-TX
• 100Base-T
• 50Pair Category-5E High-Performance Power Sum Communications Cable
• 24AWG Solid Bare Copper Conductors
• 350MHz Bandwith for Data Applications, Fast Ethernet and 155Mbps TP-PMD/CDDI
• Riser Rated (CMR)
• Category-5E Unshielded Twisted Pair
• Easily Identified Color-Striped Pairs
• Exceeds TIA/EIA-568C.2, ISO/IEC 11801
• ETL Listed, RoHS Compliant

Color Part Number
Blue 054-455BL-500
