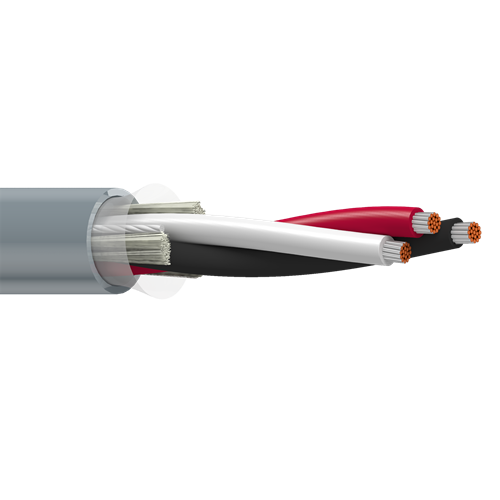

Belden 9495 14 AWG 1 Triad 42x30 Stranding Tinned Copper 300V Instrumentation PLTC Cable

Description:

High Performance Instrumentation, 1 Triad 14 AWG (42x30) Tinned Copper, PVC Insulation E1 Color Code, PVC Outer Jacket, PLTC.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.119 in (3.02 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.355 in (9.02 mm)
• Overall Cable Diameter (Nominal): 0.355 in (9.02 mm)

Standards:

• Voltage Rating: 300 V (PLTC, CMG)
• Operating Temperature: -30°C to +105°C

Applications:

• Instrumentation, Sensors, Valves, Positioners, RTD, 4-20mA, 0-10V
