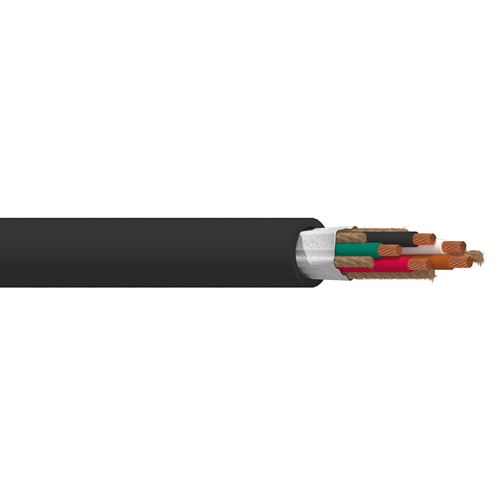

Belden 8455 20 AWG 3 Conductor 18 AWG 2 Conductor Tinned Copper 300V Portable Cordage Cable

Description:

Portable Cordage, 5 Conductor 20+18 AWG (26x34, 41x34) Tinned Copper, EPDM Insulation, Rubber Outer Jacket, UL AWM 4256.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm), 0.083 in (2.1 mm)

Outer Jacket:

• Material: SBR - Styrene Butadiene Rubber
• Nom. Thickness: 0.031 in (0.79 mm)
• Nom. Diameter: 0.28 in
• Overall Cable Diameter (Nominal): 0.28 in
• Separator: Paper Tape

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +60°C

Specifications:

• Size (AWG): 20
• No. of Conductor: 3
• Stranding: 26x34
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 41x34
• Conductor Material: TC - Tinned Copper
• Part Number: 8455
