Description:

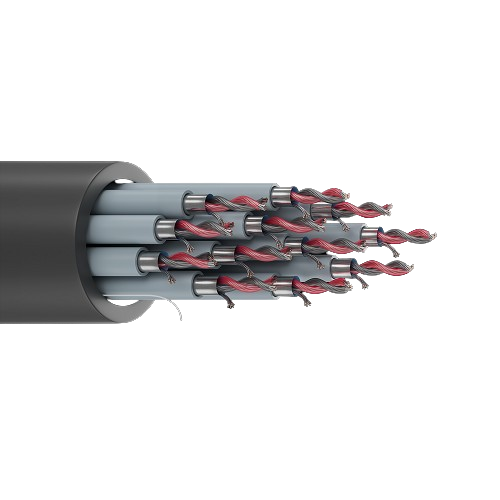

• 22 AWG stranded (7x30) TC conductor, polyolefin insulation, individually shielded with bonded Beldfoil®, numbered/color-coded solef jackets, jackets and shields are bonded so both strip simultaneously, overall fluorocopolymer jacket and nylon rip cord.

Insulation:
• Material: FEP

Inner Shield:
• Trade Name: Beldfoil®
• Type: Tape
• Material: Aluminum Foil-Polyester Tape

Inner Shield Drain Wire AWG:
• AWG: 22
• Stranding: 7x30
• Material: TC - Tinned Copper

Inner Jacket:
• Material: PVDF
• Nom. Dia.(mm): 3.023

Outer Jacket:
• Material: PVDF
• Outer Jacket Ripcord: Yes

Usage (Overall):
Applications:
• Outdoor Applications, Sports Stadium

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -40°C To +150°C
• Bulk Cable Weight: 214.301 Kg/Km
• Max. Recommended Pulling Tension: 1623.593 N
• Min. Bend Radius/Minor Axis: 133.350 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 12/01/2011
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 101.711
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 183.736
• Nominal Velocity of Propagation (VP %): 66
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 48.5588
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 35.435 Ohm/km
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 1.45 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: UL910 Plenum
• CSA Flame Test: FT4

Suitability:
• Suitability - Indoor: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 1818R
