Description:

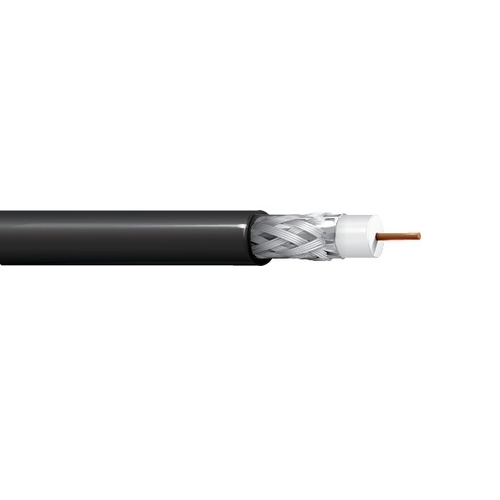

• 23 AWG solid .023" bare copper conductor, gas-injected foam FEP insulation, Duofoil® (100% coverage) plus a tinned copper braid shield (95% coverage), flexible Flamarrest® jacket.

Insulation:
• Material: Gas-injected FHDPE - Foam High Density Polyethylene
• Diameter (in.): 0.102

Outer Jacket:
• Trade Name: Flamarrest®
• Material: LS PVC - Low Smoke Polyvinyl Chloride

Usage (Overall):
Applications:
• SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p, SDI/HDTV Digital Video, High Definition (HD), Standard Definition (SDI) and Digital Audio Equipment in Professional & Commercial Applications such as TV Stations, Stadiums & Arenas, Convention Center, and other large facilities
requiring high quality digital video transmissions, Plenum Applications

Mechanical Characteristics (Overall):
• Operating Temperature Range: -20°C To +75°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 21 lbs/1000 ft.
• Max. Recommended Pulling Tension: 40 lbs.
• Min. Bend Radius/Minor Axis: 1.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 03/28/2008
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: Sub-miniature 59/U

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 75
• Nom. Inductance (μH/ft): 0.300
• Nom. Capacitance Conductor to Shield (pF/ft): 16.300
• Nominal Velocity of Propagation: VP (%): 80.000
• Nominal Delay (ns/ft): 1.22
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 20.100
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3.700
• Max. Operating Voltage - UL: 300 V RMS
• Sweep Test: 100% Sweep tested 5 MHz to 6 GHz.

Flame Test:
• UL Flame Test: UL910 Steiner Tunnel
• CSA Flame Test: FT6

Suitability:
• Suitability - Indoor: Yes
• Suitability - Aerial: Yes - Black only.
• Sunlight Resistance: No

Plenum/Non-Plenum:
• Plenum (Y/N): No
• Non-Plenum Number: 1855A
