Description:

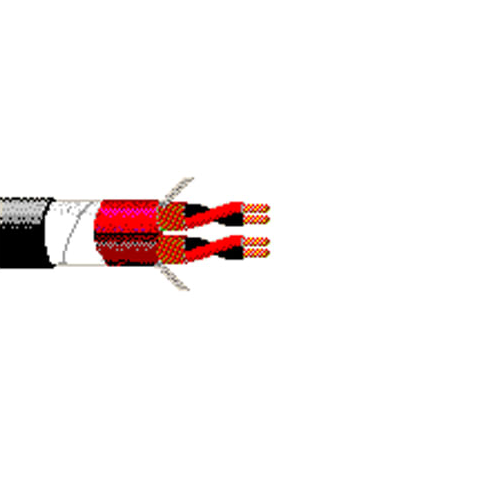

• 24 AWG stranded (41x40) bare copper conductor, polyolefin insulation, individually shielded with double serve “French Braid” (95% coverage), TC drain wire, numbered/color-coded PVC jackets, overall Black PVC jacket.

Insulation:
• Material: PO - Polyolefin
• Dia.(mm): 1.016

Inner Shield:
• Type: French Braid
• Material: BC - Bare Copper

Inner Shield Drain Wire AWG:
• AWG: 24
• Stranding: 19x26
• Material: TC - Tinned Copper

Inner Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Dia.(mm): 3.023

Outer Jacket:
• Material: PVC - Polyvinyl Chloride

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +60°C
• Bulk Cable Weight: 71.434 Kg/Km
• Max. Recommended Pulling Tension: 257.996 N
• Min. Bend Radius/Minor Axis: 88.900 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: No
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 60
• Nom. Inductance (μH/m): 0.59058
• Nom. Capacitance Conductor to Conductor (pF/m): 85.6341
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 155.848
• Nominal Velocity of Propagation (VP %): 66
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 83.6655
• Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 23.623 Ohm/km
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 1.05 Amps/Conductor @ 25°C

Plenum/Non-Plenum:
• Plenum (Y/N): No
