Description:

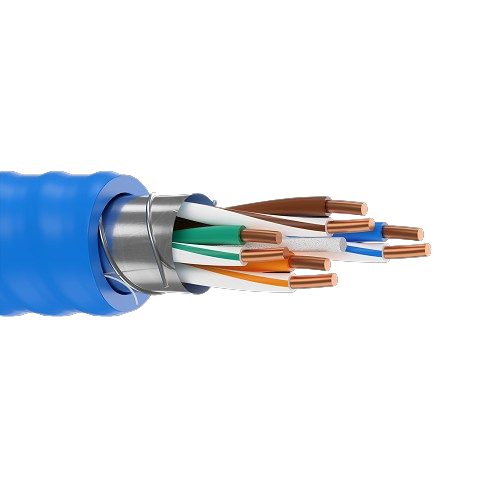

• 4-Pair, F/UTP O/A Foil Shielded, Riser CMR-LP (0.6A), 23 AWG Solid Bare Copper Conductors, Helical TC Drain, Solid Polyolefin Insulation, FR Polypropylene Rod Filler, Corrugated Flex Shield, Rip Cord, PVC Jacket

Insulation:
• Material: Polyolefin

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nominal Dia. (in.): 0.290
• Outer Jacket Ripcord: Yes

Overall Cable:
• Overall Cabling Fillers: FR Polypropylene Rod Filler

Usage (Overall):
Applications:
• HDBaseT, Full 5-Play, 4K (UHD/DCI), POH, POE

Mechanical Characteristics (Overall):
• Storage Temperature Range: -20°C To +75°C
• Installation Temperature Range: 0°C To +75°C
• Operating Temperature Range: -20°C To +75°C
• UL Temperature Rating: 90C
• Bulk Cable Weight: 37 lbs/1000 ft.
• Max. Recommended Pulling Tension: 45 lbs.
• Min. Bend Radius/Minor Axis: 1.200 in.
• Min. Bend/Installation: 2.300 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMR
• NEC Articles: 800
• CEC/C(UL) Specification: CMR
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 100.00
• Nom. Mutal Capacitance (pF/ft): 15.000
• Maximum Capacitance Unbalance (pF/100 m): 330
• Nominal Velocity of Propagation VP (%): 72.000
• Maximum Delay (ns/100 m): 538 @ 100MHz
• Maximum Delay Skew (ns/100 m): 45
• Maximum Conductor DCR @ 20°C (Ohm/100 m): 9.38
• Max. Operating Voltage - UL: 300 V RMS
• Maximum DCR Unbalanced @ 20°C (%): 3

Flame Test:
• UL Flame Test: UL1666 Riser
• C(UL) Flame Test: FT4
• CSA Flame Test: FT4

Suitability:
• Suitability - Indoor: Yes
• Suitability - Outdoor: No
• Suitability - Burial: No

Plenum/Non-Plenum:
• Plenum (Y/N): No
• Plenum Number: 2183P

Benefits and Features:
• Small and Flexible: Up to 25% smaller than Category 7A and designed to be flexible
• Resistant to Rigors of Installation: Belden's skin/foam insulation process provides the right amount of conductor adhesion for easier stripping and improved connector reliability.
• Interoperable: Compared to SMPTE's return loss limit, Belden's Precision Video Coax provides significant RL headroom to account for potential losses elsewhere in the transmission line.
• Easy to Terminate: The single shield eliminates the need to terminate individually shielded pairs or a braid. Combining the 4K UHD Media Cables with Belden's REVConnect connectivity system makes it the easiest to install, most reliable HDBaseT™ cabling solution available!
