Description:

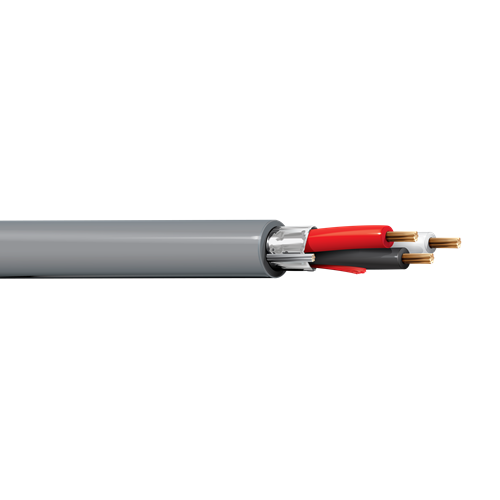

• Security & Commercial Audio Cable, Riser-CL3R, 3-14 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Insulation:
• Material: PP - Polypropylene
• Wall Thickness (mm): 0.279

Outer Shield Drain Wire AWG:
• AWG: 22
• Stranding: 7x30
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.432
• Outer Jacket Ripcord: Yes

Overall Cabling Lay Length and Direction:
• Length (mm): 82.549675

Usage (Overall):
Applications:
• Intercom/PA Systems, Sound/Audio Systems

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +75°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 80.363 Kg/Km
• Max. Recommended Pulling Tension: 769.094 N
• Min. Bend Radius/Minor Axis: 63.500 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL3R
• NEC Articles: 725
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Inductance (μH/m): 0.49215
• Nom. Capacitance Conductor to Conductor (pF/m): 272.323
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 490.181
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 8.33374
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 37.075
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 8 Amps/Conductor @ 25°C ambient (10C Temp. Rise)

Flame Test:
• UL Flame Test: UL1666 Vertical Shaft
• C(UL) Flame Test: FT4

Suitability:
• Suitability - Indoor: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): No
• Plenum Number: 6101FE
