Belden 5407FE Cable 20 AWG 9 Conductors 7 Stranding Security and Alarm Cable Commercial Applications Unshielded Cable
Belden 5407FE Cable 20 AWG 9 Conductors 7 Stranding Security and Alarm Cable Commercial Applications Unshielded Cable
SKU: SKU:
- Belden 5407FE Cable 20 AWG 9 Conductors 7 Stranding Security and Alarm Cable Commercial Applications Unshielded Cable
- Belden 5407FE Cable 20 AWG 9 Conductors 7 Stranding Security and Alarm Cable Commercial Applications Unshielded Cable
Shipping Available
Couldn't load pickup availability
Product Details

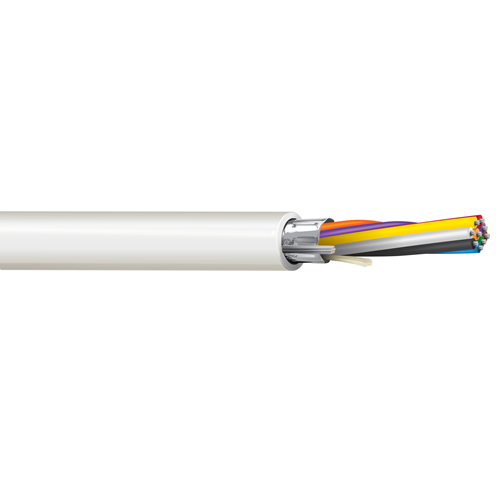

Bare copper conductors, PVC insulation, cabled, Beldfoil shield tape (foil side out) with drain wire, Gray PVC jacket with rip cord. Sequential footage marking every two feet.
Applications:
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
Benefits:
• Unsurpassed quality and reliability
• Wide range of standard options
• Custom solutions available upon request
Features:
• NEC riser and plenum rated; UL and C(UL) listed as applicable
• Rip cords for easy jacket removal; sequental footage markings on the jacket to eliminate guesswork and waste
• A unique composite cable design, Access Control Banana Peel strips away installation time and labor
| technical specification: | |
| awg | 20 |
| no. of cond. | 9 |
| stranding | 7 |
| standard lengths (ft.) | 1000 |
| standard lengths (m) | 305 |
| standard unit weight (lbs.) | 51.0 |
| standard unit weight (kg ) | 23.2 |
| outer jacket thickness (inch) | .015 |
| outer jacket thickness (mm) | .38 |
| nominal od (inch) | .236 |
| nominal od (mm) | 5.99 |
| belden cable part number | 5407FE |
