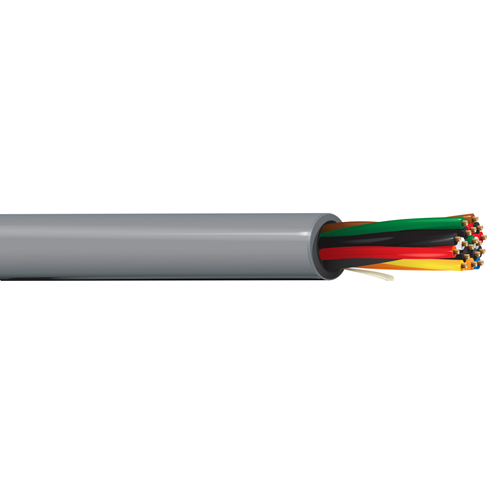

Bare copper conductors, PVC insulation. Conductors twisted into pairs, multiple pairs cabled together, Gray PVC jacket with rip cord. Sequential footage marking every two feet.
Applications:
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
Benefits:
• Unsurpassed quality and reliability
• Wide range of standard options
• Custom solutions available upon request
Features:
• NEC riser and plenum rated; UL and C(UL) listed as applicable
• Rip cords for easy jacket removal; sequental footage markings on the jacket to eliminate guesswork and waste
• A unique composite cable design, Access Control Banana Peel strips away installation time and labor
| technical specification: | |
| awg | 22 |
| no. of cond. | 9 |
| stranding | 7 |
| standard lengths (ft.) | 1000 |
| standard lengths (m) | 305 |
| standard unit weight (lbs.) | 70.0 |
| standard unit weight (kg ) | 31.8 |
| outer jacket thickness (inch) | .020 |
| outer jacket thickness (mm) | .51 |
| nominal od (inch) | .334 |
| nominal od (mm) | 8.48 |
| belden cable part number | 5547UE |
