Belden 6102UE Cable 14 AWG 4 Conductors 19 Stranding Security And Alarm Cable Commercial Applications Unshielded Plenum Rated Cable
Belden 6102UE Cable 14 AWG 4 Conductors 19 Stranding Security And Alarm Cable Commercial Applications Unshielded Plenum Rated Cable
Unit price
per
Sold out
Select a gauge:
- Belden 6102UE Cable 14 AWG 4 Conductors 19 Stranding Security And Alarm Cable Commercial Applications Unshielded Plenum Rated Cable
- Belden 6102UE Cable 14 AWG 4 Conductors 19 Stranding Security And Alarm Cable Commercial Applications Unshielded Plenum Rated Cable
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Couldn't load pickup availability
Product Information

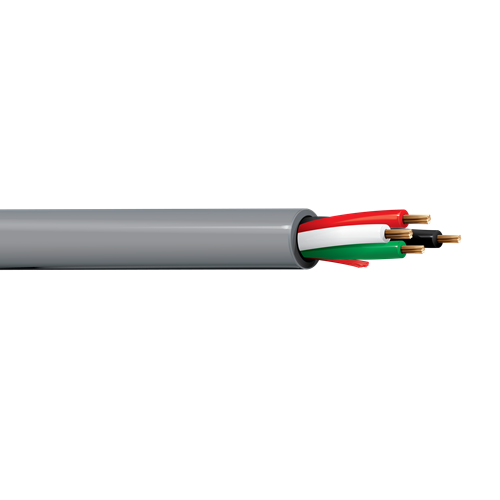

Belden 6102UE Cable 14 AWG 4 Conductors 19 Stranding Security And Alarm Cable Commercial Applications Unshielded Plenum Rated Cable
Bare copper conductors, Flamarrest insulation, conductors cabled, Natural Flamarrest jacket, rip cord. Sequential footage marking every two feet.
Applications:
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
Benefits:
• Unsurpassed quality and reliability
• Wide range of standard options
• Custom solutions available upon request
Features:
• NEC riser and plenum rated; UL and C(UL) listed as applicable
• Rip cords for easy jacket removal; sequental footage markings on the jacket to eliminate guesswork and waste
• A unique composite cable design, Access Control Banana Peel strips away installation time and labor
| technical specification: | |
| awg | 14 |
| No. of Cond. | 4 |
| stranding | 19 |
| standard lengths (ft.) | 1000 |
| standard lengths (m) | 305 |
| standard unit weight (lbs.) | 73.0 |
| standard unit weight (kg ) | 33.2 |
| outer jacket thickness (inch) | .015 |
| outer jacket thickness (mm) | .38 |
| nominal od (inch) | .261 |
| nominal od (mm) | 6.63 |
| belden cable part number | 6102UE |
