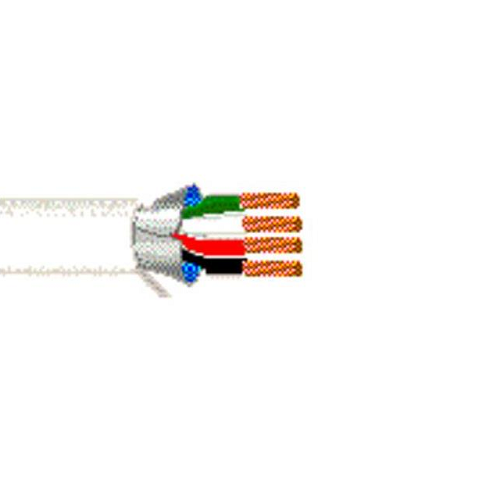

Description:
• Security, Pro Audio & Intercom Cable, Plenum-CMP, 3-18 AWG stranded bare copper conductors with FEP insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Insulation:
• Material: FEP - Fluorinated Ethylene Propylene
• Wall Thickness (mm): 0.1524

Outer Shield Drain Wire AWG:
• AWG: 20
• Stranding: 7x28
• Material: TC - Tinned Copper

Outer Jacket:
• Trade Name: Flamarrest®
• Material: LS PVC - Low Smoke Polyvinyl Chloride
• Nom. Wall Thickness (mm): 4.191
• Outer Jacket Ripcord: Yes

Usage (Overall):
Applications:
• Pro Audio, Intercom/PA Systems, Security Systems

Mechanical Charactertistics (Overall):
• Operating Temperature Range: 0°C To +75°C
• UL Tempeature Rating: 75°C
• Bulk Cable Weight: 32.800 lbs/1000 ft.
• Max. Recommended Pulling Tension: 89.600 lbs.
• Min. Bend Radius/Minor Axis: 1.750 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• NEC Articles: 800
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/ft): 32
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/ft): 57.6
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 6.5
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 7.3
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 4 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: NFPA 262
• C(UL) Flame Test: FT6

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
