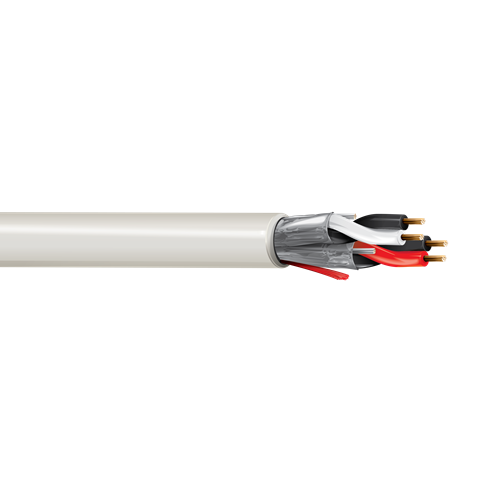

Bare copper conductors, FEP insulation (per table). Conductors twisted into pairs and individually shielded with Beldfoil tape (aluminum side facing in) and a drain wire, multiple pairs cabled together, Gray Fluorocopolymer (22 AWG) or Natural Flamarrest® (18 AWG) jacket, rip cord. Sequential footage marking every two feet.
Applications:
• Security Systems
• Intercom/PA Systems
• Sound/Audio Systems
• Power-Limited Controls
• Analog Multi-pair Snakes
Benefits:
• Unsurpassed quality and reliability
• Wide range of standard options
• Custom solutions available upon request
Features:
• NEC riser and plenum rated; UL and C(UL) listed as applicable
• Rip cords for easy jacket removal; sequental footage markings on the jacket to eliminate guesswork and waste
• A unique composite cable design, Access Control Banana Peel strips away installation time and labor
| Technical specification: | |
| awg | 18 |
| no. of cond. | 2 |
| stranding | 7 |
| standard lengths (Ft) | 500 |
| standard lengths (m) | 152 |
| standard unit weight (Lbs.) | 26.5 |
| standard unit weight (kg) | 12.0 |
| outer jacket thickness (Inch) | .017 |
| outer jacket thickness (mm) | .42 |
| nominal od (Inch) | .281 |
| nominal od (mm) | 7.14 |
| voltage rating | 300V |
| belden cable part number | 6341PC |
