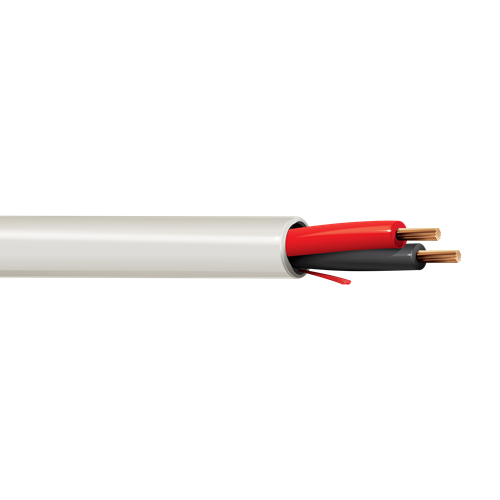

Security & Commercial Audio Cable, Plenum-CMP 2-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Benefits & Features:
• All cables feature Electrolytic Tough Pitch (ETP) virgin copper construction. The speaker cable line includes direct burial speaker cable with ultra-high purity (99.995%), sometimes described as "oxygen-free" copper (OFC)
• Belden cables use soft drawn and annealed conductors which allow the cables to be flexed without breaking
• Belden jackets pull easier and are easier to strip, saving installation time and money

Applications:
• Intercom/PA Systems
• Sound/Audio Systems

Mechanical Characteristics (Overall):
• Installation Temperature Range: 0°C To +75°C
• Operating Temperature Range: -10°C To +75°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 8.900 lbs/1000 ft.
• Max. Recommended Pulling Tension: 18.200 lbs.
• Min. Bend Radius/Minor Axis: 1.250 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards & Environmental Programs:
• NEC/(UL) Specification: CMP
• NEC Articles: 800
• CEC/C(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire & Cable): Yes
• MII Order #39 (China RoHS): Yes

Flame Test:
• UL Flame Test: NFPA 262
• C(UL) Flame Test: FT6

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 5500UE
