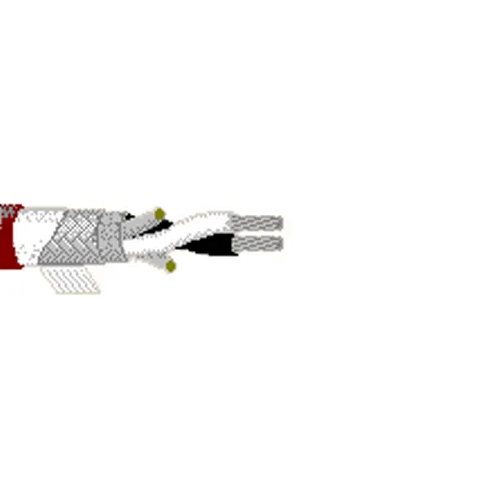

Belden 8402 Cable 20 AWG 2 Conductors Microphone Rugged Low Impedance Stranded 26x34 CSPE Jacket Cable

Belden 8402 Cable 20 AWG 2 Conductors Microphone Rugged Low Impedance Stranded 26x34 CSPE Jacket Cable

Description:
• 20 AWG stranded (26x34) high-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, CSPE - Chlorosulphonated Polyethylene jacket.

Insulation:
• Material: EPDM - Ethylene Propylene Diene Monomer Rubber
• Diameter (in.): 0.083

Inner Shield:
• Separator Material: Cotton Wrap

Outer Jacket:
• Material: CSPE - Chlorosulphonated Polyethylene

Mechanical Charactertistics (Overall):
• Operating Tempeature Range: -20°C To +60°C
• Non-UL Temperature Rating: 60°C
• Bulk Cable Weight: 50 lbs/1000 ft.
• Max. Recommended Pulling Tension: 98 lbs.
• Min. Bend Radius/Minor Axis: 2.630 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 52
• Nom. Inductance (μH/ft): 0.18
• Nom. Capacitance Conductor to Conductor (pF/ft): 30
• Nom. Capacitance Cond. to Other Conductor and Shield (pF/ft): 55
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 10.2
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3
• Max. Operating Voltage - Non-UL: 600 V RMS
• Max. Recommended Current: 4 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: VW-1

Plenum/Non-Plenum:
• Plenum (Y/N): No
