Description:

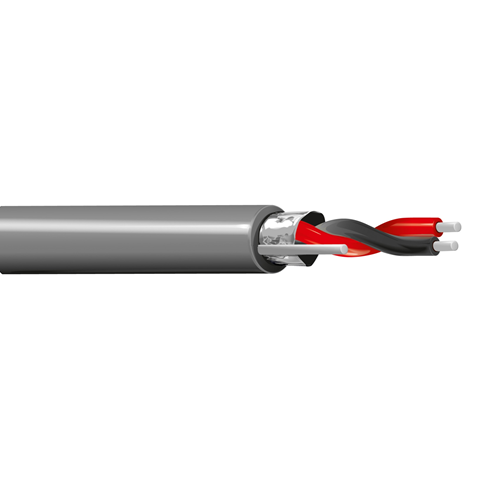

• 22 AWG solid tinned copper conductors, polypropylene insulation, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG solid TC drain wire, PVC jacket.

Insulation:
• Material: PP - Polypropylene
• Wall Thickness (mm): 0.1778

Outer Shield Drain Wire AWG:
• AWG: 22
• Stranding: Solid
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.4572

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +105°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 12 lbs/1000 ft.
• Max. Recommended Pulling Tension: 37 lbs.
• Min. Bend Radius/Minor Axis: 1.250 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CM
• CEC/C(UL) Specification: CM
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: No
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 40
• Nom. Inductance (μH/ft): 0.08
• Nom. Capacitance Conductor to Conductor (pF/ft): 40
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/ft): 76
• Nominal Velocity of Propagation (VP %): 66
• Nominal Delay (ns/ft): 1.5
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 16.1
• Nom. Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 12.65
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 2.9 Amp/Conductor @ 25°C

Suitability:
• UL Flame Test: UL1685 UL Loading

Plenum/Non-Plenum:
• Plenum (Y/N): No
