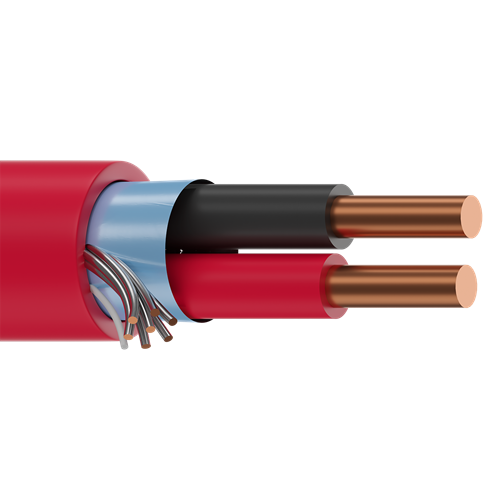

Bare copper conductors, PVC insulation, conductors cabled together, Beldfoil shield and drain wire, Red PVC jacket with rip cord. Sequential footage marking every two feet.
Applications:
• Fire Protection
• Alarm
• Signal
• Monitor/Detection
• Audio Circuits
• Control Circuits
• Initiating Circuits
• Notification Circuits
Benefits:
• Unsurpassed quality and reliability
• Wide range of standard options
• Custom solutions available upon request
Features:
• NEC riser and plenum rated; UL and C(UL) listed as applicable
• Rip cords for easy jacket removal; sequental footage markings on the jacket to eliminate guesswork and waste
• A unique composite cable design, Access Control Banana Peel strips away installation time and labor
| technical specification: | |
| awg | 16 |
| No. of Cond. | 2 |
| stranding | solid |
| standard lengths (ft.) | 1000 |
| standard lengths (m) | 305 |
| standard unit weight (lbs.) | 29.0 |
| standard unit weight (kg ) | 13.2 |
| outer jacket thickness (inch) | .010 |
| outer jacket thickness (mm) | .25 |
| nominal od (inch) | .178 |
| nominal od (mm) | 4.52 |
| belden cable part number | 5220FL |
