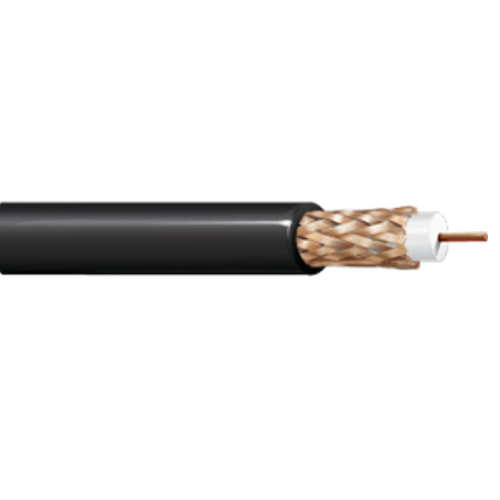

Belden 82262 Cable 22 AWG Computer And Instrumentation 93 Ohm Coax Flamarrest Jacket Cable
Description:
• RG-62/U Type
• 22 AWG Solid .025″ Bare Copper-covered Steel Conductor
• Bare Copper Braid Shield (94% Coverage)
• Plenum
• Semi-solid FEP Teflon® Insulation
• Natural Flamarrest Jacket
| technical specification: | |
| awg | 22 |
| standard lengths ft. | U-1000 |
| standard lengths m | U-304.8 |
| standard unit weight lbs. | 31.0 |
| standard unit weight kg | 14.1 |
| conductor (stranding) diameter nom. dcr | 22 AWG (Solid) .025″ BCCS 41.2Ω/M′ 135.2Ω/km |
| nominal core od inch | 0.146 |
| nominal core od mm | 3.71 |
| shielding materials nom. dcr | BC Braid 95% Shield Coverage 3.4Ω/M′ 11.2Ω/km |
| nominal od inch | 0.204 |
| nominal od mm | 5.18 |
| nom. imp. (ω) | 93 |
| nom. vel. of prop. | 85% |
| nominal capacitancepf/ft. | 12.5 |
| nominal capacitancepf/m | 41.0 |
| belden cable part number | 82262 |
