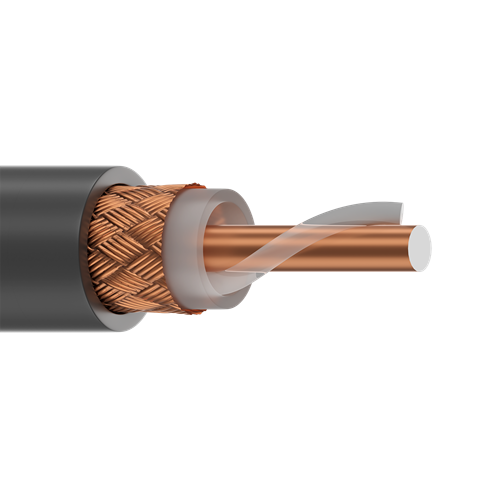

Belden 8254 Cable 22 AWG Computer And Instrumentation 93 Ohm Coax Cable
Description:
• 93 Ohm
• RG-62/U Type
• JAN-C-17A
• 22 AWG Solid .025″ Bare Copper-covered Steel Conductor
• BC Braid Shield (95% Coverage)
• Semi-solid Polyethylene Insulation
• Black PVC Jacket
| technical specification: | |
| awg | 22 |
| standard lengths ft. | U-500 |
| standard lengths m | U-152.4 |
| standard unit weight lbs. | 18.0 |
| standard unit weight kg | 8.2 |
| conductor (stranding) diameter nom. dcr | 22 AWG (Solid) .025″ BCCS 41.2Ω/M′ 135.1Ω/km |
| nominal core od inch | 0.146 |
| nominal core od mm | 3.71 |
| shielding materials nom. dcr | BC Braid 95% Shield Coverage 2.9Ω/M′ 9.5Ω/km |
| nominal od inch | 0.238 |
| nominal od mm | 6.05 |
| nom. imp. (ω) | 93 |
| nom. vel. of prop. | 84% |
| nominal capacitancepf/ft. | 13.5 |
| nominal capacitancepf/m | 44.3 |
| belden cable part number | 8254 |
