Belden 9222 Cable 20 AWG Computer And Instrumentation 50 Ohm Triax Cable

Belden 9222 Cable 20 AWG Computer And Instrumentation 50 Ohm Triax Cable

Select gauge from drop-down menu for prices:

Regular price $3.98 $2.86 Sale /per Foot

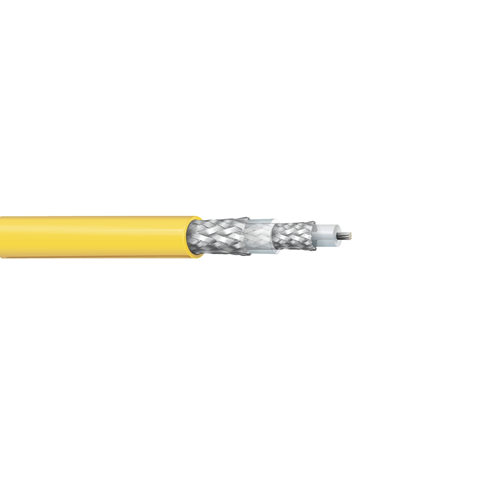

Belden 9222 Cable 20 AWG Computer And Instrumentation 50 Ohm Triax Cable

Description:
• RG-58A/U Type
• 20 AWG Stranded (7x28) .037″ Tinned Copper Conductor
• Double Tinned Copper Braid Shield (96% Coverage)
• Polyethylene Insulation
• Yellow PVC Jacket (Polyethylene Insulation between Braids)

technical specification:
awg 20
standard lengths ft. 100
standard lengths m 30.5
standard unit weight lbs. 4.6
standard unit weight kg 2.1
conductor (stranding) diameter nom. dcr 20 AWG (7x28) .037″ TC 9.5Ω/M′ 31.0Ω/km
nominal core od inch 0.114
nominal core od mm 2.90
shielding materials nom. dcr (2) TC Braids 96% Shield Coverage Inner: 4.7Ω/M′ 15.5Ω/km Outer: 4.3Ω/M′ 14.1Ω/km
nominal od inch 0.240
nominal od mm 6.10
nom. imp. (ω) 50
nom. vel. of prop. 66%
nominal capacitancepf/ft. 30.8
nominal capacitancepf/m 101.0
belden cable part number 9222
