Description:

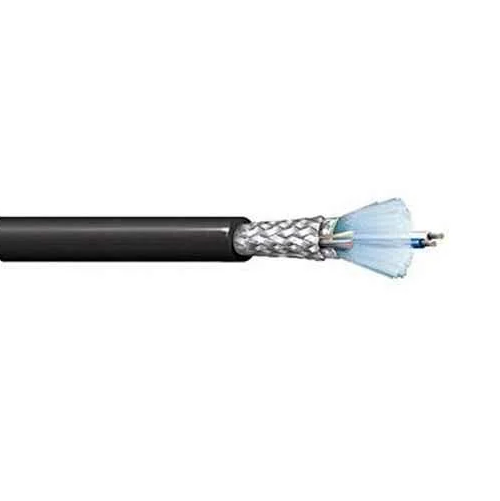

• 22 AWG stranded (7x30) tinned copper cond., Datalene® insulation, twisted pairs, overall Beldfoil® shield (100% coverage) plus a tinned copper braid (65% coverage), drain wire, aluminum interlocked armor, inner PVC jacket, UV resistant PVC outer jacket.

Insulation:
• Material: FHDPE - Foam High Density Polyethylene

Outer Shield Drain Wire AWG:
• AWG: 22
• Stranding: 7x30
• Material: TC - Tinned Copper
• Outer Shield Drain Wire Diameter: 0.030

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Outer Jacket over Armor (y/n): Y
• Outer Jacket Separator Material: PVC - Polylvinyl Chloride

Armor:
• Armor Type: Interlocked
• Armor Material: Aluminum
• Diameter over Armor: 0.550

Mechanical Characteristics (Overall):
• Installation Temperature Rating: -20°C To +60°C
• Operating Temperature Range: -40°C To +60°C
• UL Temperature Rating: 60°C
• Non-UL Temperature Rating: 60°C
• Max. Recommended Pulling Tension: 205 lbs.
• Min. Bend Radius/Minor Axis: 8.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 05/10/2006
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 120
• Nom. Capacitance Conductor to Conductor (pF/ft): 11.0
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/ft): 20.9
• Nominal Velocity of Propagation: VP (%): 78
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 14.7
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 1.8
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 2.7 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: UL1685 UL Loading
• CSA Flame Test: FT1

Suitability:
• Sunlight Resistance: Yes
