Product Details

Description:

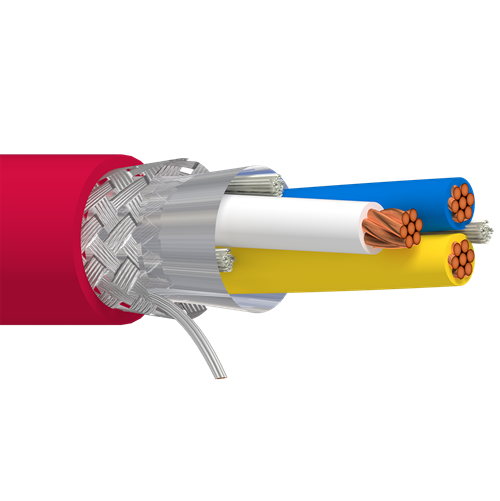

• 20 AWG stranded (7x28) bare copper conductors, foam HDPE insulation, overall Beldfoil® shield (100% coverage) plus tinned copper braid shield (78% coverage), 22 AWG stranded (19x34) tinned copper drain wire, PVC jacket.

Insulation:
• Material: FHDPE - Foam High Density Polyethylene

Outer Shield Drain Wire AWG:
• AWG: 22
• Stranding: 19x34
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (in.): 0.035

Usage (Overall):
Applications:
• CC Link

Mechanical Characteristics (Overall):
• Operating Temperature Range: -30°C To +60°C
• Bulk Cable Weight: 49 lbs/1000 ft.
• Max. Recommended Pulling Tension: 46 lbs.
• Min. Bend Radius/Minor Axis: 3 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CM
• CEC/C(UL) Specification: CM
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 08/15/2006
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Other Specification: Mitsubishi CC Link Signal

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 110
• Nom. Capacitance Conductor to Conductor (pF/ft): 18.3
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 9.5
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 8
• Max. Operating Voltage - UL: 300 V RMS

Flame Test:
• UL Flame Test: UL1685 UL Loading

Plenum/Non-Plenum:
• Plenum(Y/N): No
