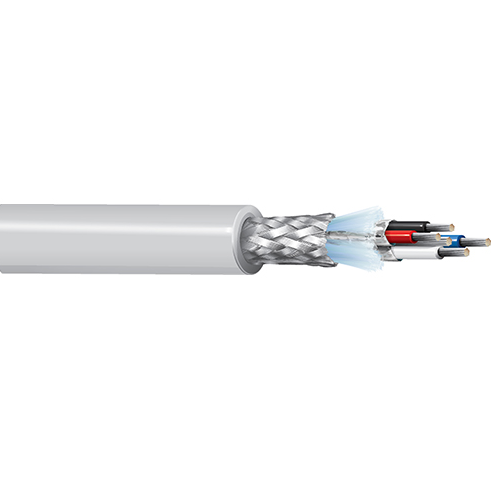

Description:
• 15 and 18 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (data), individually foil shielded (100% coverage) plus an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.

Insulation:
• Material: PVC - Polyvinyl Chloride (15 AWG)
• Material: FPE - Foam Polyethylene (18 AWG)

Inner Shield:
• Material: Aluminum Foil-Polyester Tape (15 AWG Pair and 18 AWG Pair)

Outer Shield Drain Wire AWG:
• AWG: 18
• Stranding: 65x36
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (in.): 0.060

Mechanical Characteristics (Overall):
• Operating Temperature Range: -20°C To +75°C
• UL Temperature Rating: 75°C (UL AWM Style 20201)
• Bulk Cable Weight: 108 lbs/1000 ft.
• Max. Recommended Pulling Tension: 205 lbs.
• Min. Bend Radius/Minor Axis: 4.600 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMG, PLTC-ER
• CEC/C(UL) Specification: CMG
• AWM Specification: UL Style 20201 (600 V 75°C)
• CSA Specification: IIIA
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Other Specification: ODVA Class 2 Thick

Electrical Characteristics (Overall):
• Unaveraged Impedance (Ohm): 120 (18 AWG Pair Only)
• Nom. Inductance (μH/ft): 0.174 (15 AWG Pair Only)
• Nom. Capacitance Conductor to Conductor (pF/ft): 12.0 (18 AWG Pair Only)
• Nominal Velocity of Propagation: VP (%): 75 (18 AWG Pair Only)
• Maximum Delay (ns/ft): 1.36 (18 AWG Pair Only)
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 3.6 (15 AWG)
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 6.9 (18 AWG)
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 1.8
• Max. Operating Voltage - UL: 300 V RMS (C(CL) AWM)
• Max. Recommended Current: 8.0 Amps (15 AWG)
• Max. Recommended Current: 5.0 Amps (18 AWG)

Flame Test:
• UL Flame Test: UL1685 FT4 Loading
• CSA Flame Test: FT4

Suitability:
• Sunlight Resistance: Yes
• Oil Resistance: Yes
