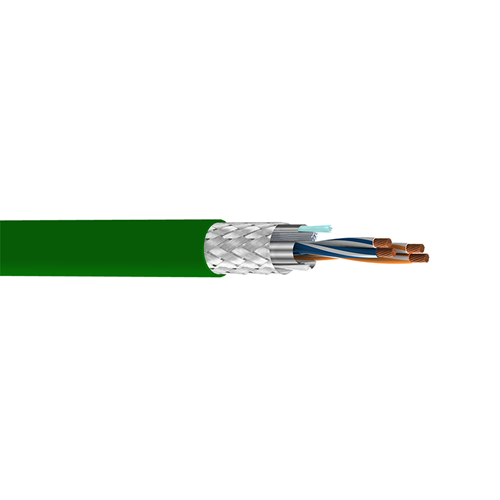

Belden 7201A 24 AWG 2 Pair 41x40 Stranding Bare Copper 300V MachFlex Cable

Description:

MachFlex for High Flex, 2 Pair 24 AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.0115
• Nom. Insulation Diameter: 0.0555 in (1.41 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (41x40) TC

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 89%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.322 in
• Overall Cable Diameter (Nominal): 0.322 in

Standards:

• Voltage Rating: 300V
• Temperature Range: Operating: -20°C to +60°C; UL Temp Rating: 60°C

Applications:

• Flex Data, RS232, RS485
