Product Details

Description:

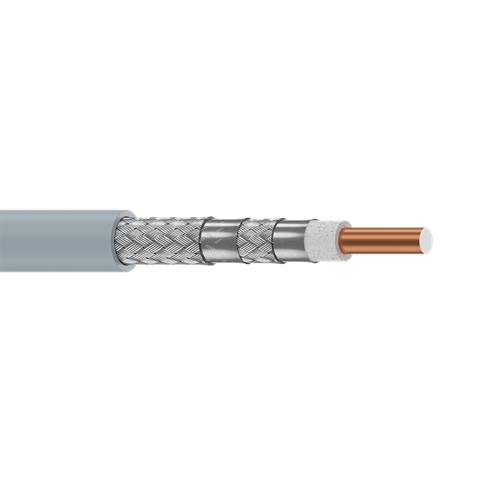

• 14 AWG solid bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond® IV quad shield (100% coverage), PVC Jacket.

Insulation:
• Material: Gas-injected FPE - Foam Polyethylene
• Diameter (in.): 0.280

Outer Jacket:
• Material: PVC - Polyvinyl Chloride

Usage (Overall):
Applications:
• Plenum RG-11/U Type

Mechanical Characteristics (Overall):
• Operating Temperature Range: -30°C To +80°C
• Bulk Cable Weight: 59 lbs/1000 ft.
• Max. Recommended Pulling Tension: 308 lbs.
• Min. Bend Radius/Minor Axis: 4.500 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL2R, CMR
• CEC/C(UL) Specification: CMG
• EU Directive 2011/65/EU (ROHS II): Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: 11/U

Electrical Characteristics (Overall):
• Nom. Charactertistic Impedance (ohm): 75
• Nom. Charactertistic Tolerance (ohms): ± 3
• Nom. Inductance (μH/ft): 0.097
• Nom. Capacitance Conductor to Shield (pF/100 m): 16.2
• Nominal Velocity of Propagation: VP (%): 82
• Nominal Delay (ns/ft): 1.2
• Nom. Conductor DC Resistance @ 20°C (Ohm/100 ft): 11.0
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/100 ft): 1.5
• Max. Operating Voltage - UL: 300 V RMS

Flame Test:
• UL Flame Test: UL1666 Riser
• CSA Flame Test: FT4

Plenum/Non-Plenum:
• Plenum(Y/N): No
• Non-Plenum Number: 3095A
