Product Details

Description:

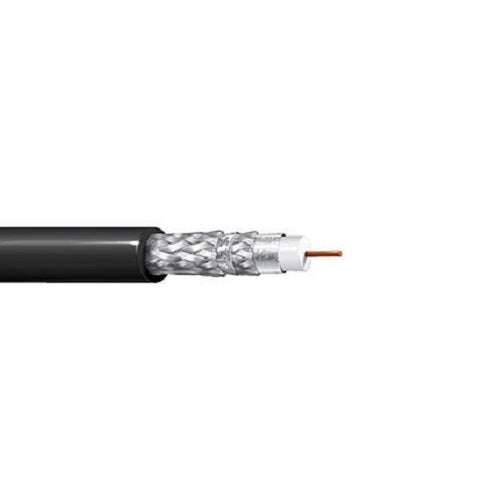

• RG-6/U Type, 18 AWG solid bare copper-covered steel conductor, foam polyethylene insulation, Duobond® IV Quad Shield, PVC Jacket, continuously corrugated aluminum armor, outer PVC jacket.

Insulation:
• Material: Foam Polyethylene
• Diameter (in.): 0.180

Inner Jacket:
• Material: PVC - Polyvinyl Chloride

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (in.): 0.045

Armor:
• Armor Type: Continuously Corrugated
• Armor Material: Aluminum
• Diameter over Armor: 0.495

Usage (Overall):
Applications:
• Industrial Data Solutions®, Industrial Coax, ControlNet™ Quad Shielded Coax

Mechanical Characteristics (Overall):
• Operating Temperature Range: -30°C To +75°C
• Max. Recommended Pulling Tension: 162 lbs.
• Min. Bend Radius/Minor Axis: 6.850 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL2R, CMR
• CEC/C(UL) Specification: CMG
• EU Directive 2011/65/EU (ROHS II): Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• RG Type: 6/U

Electrical Characteristics (Overall):
• Nom. Charactertistic Impedance: (ohm): 75
• Nom. Inductance (μH/ft): 0.097
• Nom. Capacitance Conductor to Shield (pF/100 m): 16.2
• Nominal Velocity of Propagation: VP (%): 82
• Nominal Delay (ns/ft): 1.28
• Nom. Conductor DC Resistance @ 20°C (Ohm/100 ft): 28.0
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/100 ft): 3.6
• Max. Operating Voltage - UL: 300 V RMS

Flame Test:
• UL Flame Test: UL1666 Riser

Suitability:
• Suitability - Indoor: Yes

Plenum/Non-Plenum:
• Plenum(Y/N): No
