Product Details

Description:

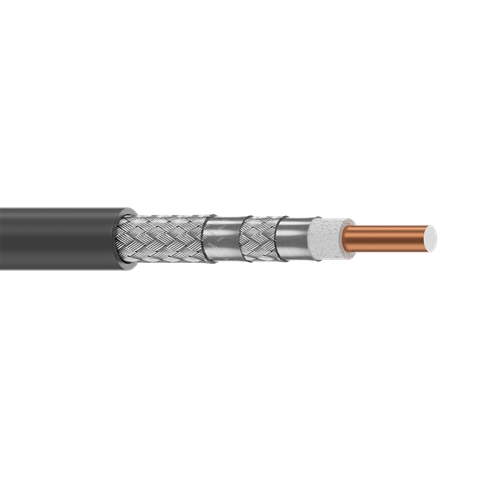

• 18 AWG solid bare copper-covered steel conductor, foam FEP insulation, Duobond® IV Quad Shield (100% coverage), fluorocopolymer Jacket.

Insulation:
• Material: FFEP - Foam Fluorinated Ethylene Propylene
• Diameter (in.): 0.170

Outer Jacket:
• Material: PVDF - Fluorocopolymer

Mechanical Characteristics (Overall):
• Operating Temperature Range: -20°C To +150°C
• Non-UL Temperature Rating: 150°C
• Bulk Cable Weight: 43 lbs/1000 ft.
• Max. Recommended Pulling Tension: 104 lbs.
• Min. Bend Radius/Minor Axis: 2.750 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CMP
• EU Directive 2011/65/EU (ROHS II): Yes
• IEEE Specification: 45
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 09/06/2014
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Other Specification: ABS Type Approval Certificate 13-HS1092993
• RG Type: 6/U

Electrical Characteristics (Overall):
• Nom. Charactertistic Impedance: (ohm): 75
• Nom. Inductance (μH/ft): 0.097
• Nom. Capacitance Conductor to Shield (pF/100 m): 16.2
• Nominal Velocity of Propagation: VP (%): 82
• Nominal Delay (ns/ft): 1.28
• Nom. Conductor DC Resistance @ 20°C (Ohm/100 ft): 28.0
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/100 ft): 3.6
• Max. Operating Voltage - UL: 300 V RMS

Flame Test:
• UL Flame Test: UL1685 FT4 Loading, Limited Smoke
• C(UL) Flame Test: FT4
• IEC Flame Test: 60332-3-22 (Category A)
• IEEE Flame Test: 1202

Suitability:
• Sunlight Resistance: Yes

Plenum/Non-Plenum:
• Plenum(Y/N): No
• plenum Number: 3093A
