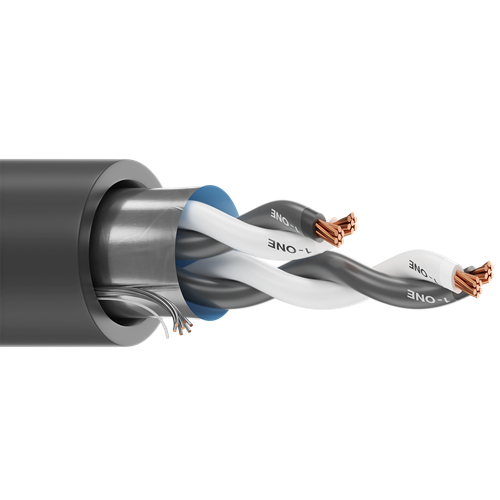

Belden 1069A 16 AWG 2 Pairs 600V Multi Conductor BC Tray Cable

Belden 1069A 16 AWG 2 Pairs 600V Multi Conductor BC Tray Cable

SKU:

Select a gauge:
  • Belden 1069A 16 AWG 2 Pairs 600V Multi Conductor BC Tray Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $3.12 /FT   Web pricing policy
BEFORE   Now $3.12 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Product Details

Overall Cabling Lay Length and Direction:
• Length (mm): 125.221507

Pair Lay Length and Direction:
• Lay Length (mm): 63.49975
• Lay Length (mm): 69.849725

Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 134.384 Kg/Km
• Max. Recommended Pulling Tension: 796.228 N
• Min. Bend Radius/Minor Axis: 116.840 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: NPLF, TC-ER

Electrical Characteristics (Overall):
• Nom. Characteristic Impedance (Ohm): 49
• Nom. Mutual Capacitance (pF/m): 131.24
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 12.0413
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 10.6304

technical specification:
awg 16
# paris 2
stranding 7x24
no. of conductors 4
conductor material bare copper
outer shield - type tape
outer shield - material aluminum foil-polyester tape
overall cable- nominal dia. (mm) 11.582
belden cable part number 1069A
