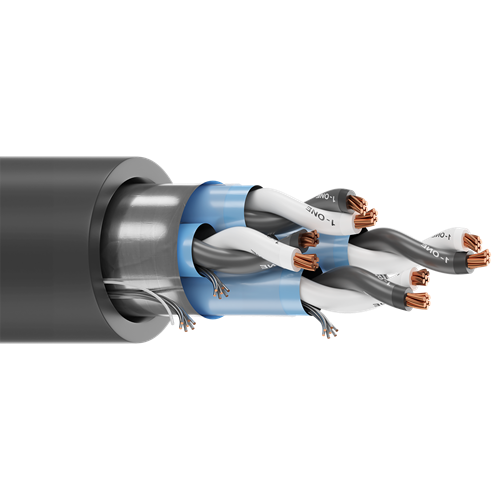

Belden 1070A 16 AWG 4 Pairs 600V Multi Conductor BC Tray Cable
Belden 1070A 16 AWG 4 Pairs 600V Multi Conductor BC Tray Cable
SKU: SKU:
Select a gauge:
- Belden 1070A 16 AWG 4 Pairs 600V Multi Conductor BC Tray Cable
- Belden 1070A 16 AWG 4 Pairs 600V Multi Conductor BC Tray Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Product Details
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.6002
• Outer Jacket Ripcord: Yes
Overall Cabling Lay Length and Direction:
• Length (mm): 147.31942
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 242.577 Kg/Km
• Max. Recommended Pulling Tension: 1427.872 N
• Min. Bend Radius/Minor Axis: 55.880 mm
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 10.3023
| technical specification: | |
| awg | 16 |
| # paris | 4 |
| stranding | 7x24 |
| no. of conductors | 8 |
| conductor material | bare copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 14.224 |
| belden cable part number | 1070A |
