  • Belden 1071A 16 AWG 8 Pairs 600V Multi Conductor BC Tray Cable
1 1

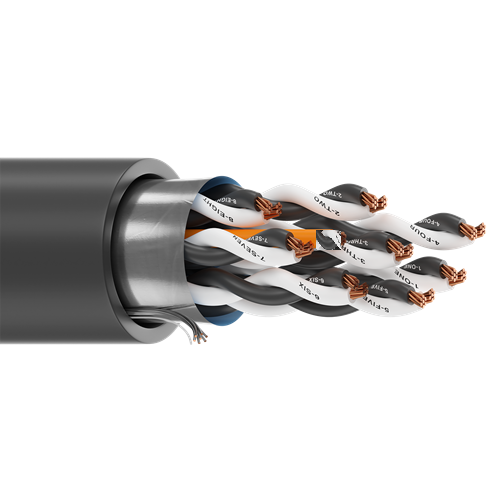

Belden 1071A 16 AWG 8 Pairs 600V Multi Conductor BC Tray Cable

Belden 1071A 16 AWG 8 Pairs 600V Multi Conductor BC Tray Cable

SKU:

Select a gauge:
  • Belden 1071A 16 AWG 8 Pairs 600V Multi Conductor BC Tray Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $8.66 /FT   Web pricing policy
BEFORE   Now $8.66 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Product Details

Overall Cabling Lay Length and Direction:
• Length (in.): 7.0

Pair Lay Length and Direction:
• Lay Length (in.): 2.5
• Lay Length (in.): 2.75

Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 266.600 lbs/1000 ft.
• Max. Recommended Pulling Tension: 607 lbs.
• Min. Bend Radius/Minor Axis: 6.800 in.

Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3.01

technical specification:
awg 16
# paris 8
stranding 7x24
no. of conductors 16
conductor material bare copper
outer shield - type tape
outer shield - material aluminum foil-polyester tape
overall cable- nominal dia. (mm) 17.170
belden cable part number 1071A
