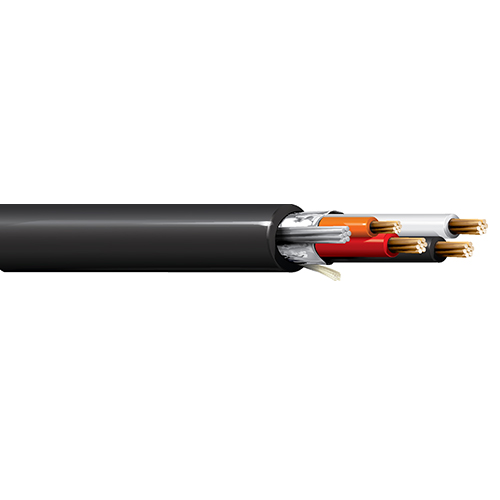

Belden 1085A 20 AWG 12 Triads 300V PLTC Cable
Select gauge from drop-down menu for prices:
Belden 1085A 20 AWG 12 Triads 300V PLTC Cable
- Belden 20 AWG Triads 300V PLTC Individually and Overall Beldfoil Shielding Orange Communication Cable
- Belden 3018A 20 AWG 2 Triads 300V PLTC Cable
- Belden 1083A 20 AWG 4 Triads 300V PLTC Cable
- Belden 1084A 20 AWG 8 Triads 300V PLTC Cable
- Belden 1092A 20 AWG 16 Triads 300V PLTC Cable
- Belden 1086A 20 AWG 24 Triads 300V PLTC Cable
- Belden 3067A 20 AWG 36 Triads 300V PLTC Cable
Belden 1085A 20 AWG 12 Triads 300V PLTC Cable
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 474.736 Kg/Km
• Max. Recommended Pulling Tension: 2829.060 N
• Min. Bend Radius/Minor Axis: 181.610 mm
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 85.306
technical specification: | |
awg | 20 |
# triads | 12 |
stranding | 7x28 |
no. of conductors | 37 |
conductor material | bare copper |
outer shield - type | tape |
outer shield - material | aluminum foil-polyester tape |
overall cable- nominal dia. (mm) | 18.136 |
belden cable part number | 1085A |
