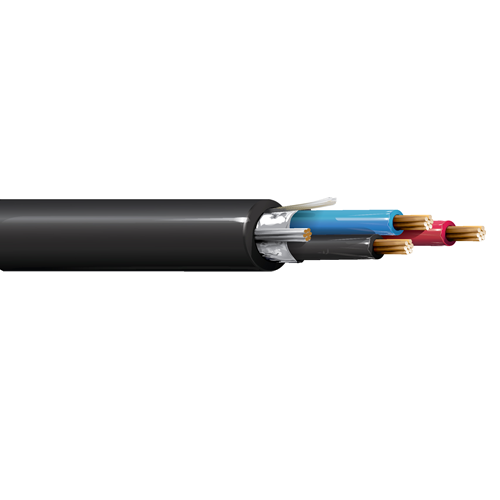

Product Details
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 2.0825
• Outer Jacket Ripcord: Yes
Overall Cabling Lay Length and Direction:
• Length (in.): 9.900
Pair Lay Length and Direction:
• Lay Length (in.): 4.0
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 499.800 lbs/1000 ft.
• Max. Recommended Pulling Tension: 1072 lbs.
• Min. Bend Radius/Minor Axis: 8.700 in.
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 2.84
| technical specification: | |
| awg | 16 |
| # triads | 8 |
| stranding | 7x24 |
| no. of conductors | 24 |
| conductor material | bare copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 22.149 |
| belden cable part number | 1098A |
