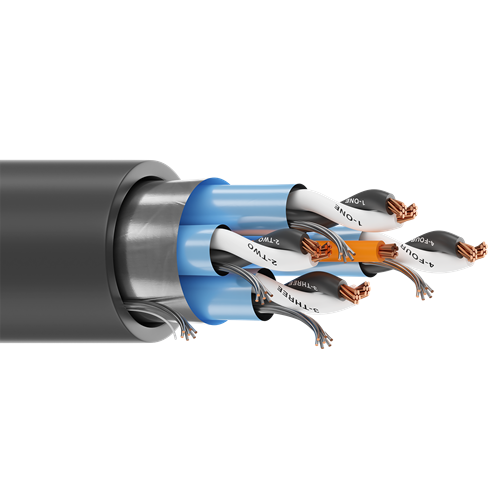

Product Details
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.397
• Outer Jacket Ripcord: Yes
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 257.459 Kg/Km
• Max. Recommended Pulling Tension: 1868.240 N
• Min. Bend Radius/Minor Axis: 132.080 mm
Electrical Characteristics (Overall):
• Nom. Capacitance Cond. to Other Conductor and Shield (pF/m): 196.86
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 10.3023
| technical specification: | |
| awg | 16 |
| # pairs | 4 |
| stranding | 7x24 |
| no. of conductors | 9 |
| conductor material | bare copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 13.360 |
| belden cable part number | 1493A |
