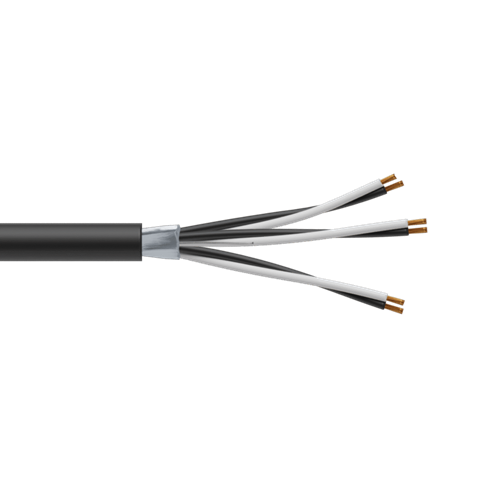

Product Details
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.3462
• Outer Jacket Ripcord: Yes
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 119 lbs/1000 ft.
• Max. Recommended Pulling Tension: 241 lbs.
• Min. Bend Radius/Minor Axis: 4.800 in.
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3.14
| technical specification: | |
| awg | 16 |
| # paris | 3 |
| stranding | 7x24 |
| no. of conductors | 6 |
| conductor material | bare copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 12.344 |
| belden cable part number | 1527A |
