  • Belden 3090A 16 AWG 1 Pair 600V Multi Conductor BC PVC Jacket Tray Cable
1 1

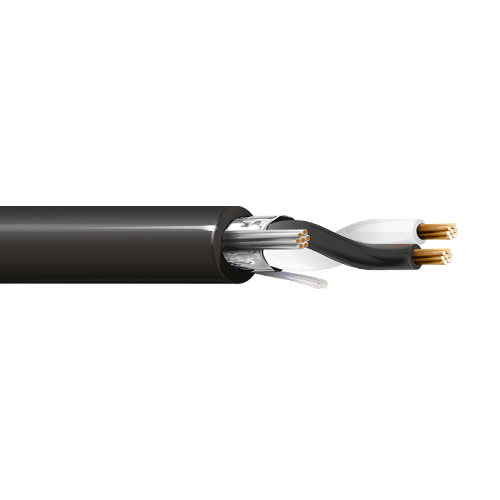

Belden 3090A 16 AWG 1 Pair 600V Multi Conductor BC PVC Jacket Tray Cable

Belden 3090A 16 AWG 1 Pair 600V Multi Conductor BC PVC Jacket Tray Cable

SKU:

Select a gauge:
  • Belden 3090A 16 AWG 1 Pair 600V Multi Conductor BC PVC Jacket Tray Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.28 /FT   Web pricing policy
BEFORE   Now $1.28 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Product Details

Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 45.400 lbs/1000 ft.
• Max. Recommended Pulling Tension: 105 lbs.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: TC

Electrical Characteristics (Overall):
• Nom. Inductance (?H/ft): 0.091
• Nom. Capacitance Conductor to Conductor (pF/ft): 50
• Nom. Capacitance Cond. to Other Conductor and Shield (pF/ft): 87
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 3.67
• Nominal Conductor Loop Resistance @ 20°C (Ohm/1000 ft): 17.32
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 4.99

Flame Test:
• UL Flame Test: UL1685 UL Loading
• C(UL) Flame Test: FT4

Suitability:
• Suitability - Indoor: Yes
• Suitability - Outdoor: Yes

technical specification:
awg 16
# paris 1
stranding 7x24
no. of conductors 2
conductor material bare copper
outer shield - type tape
outer shield - material aluminum foil-polyester tape
overall cable- nominal dia. (mm) 7.620
belden cable part number 3090A
