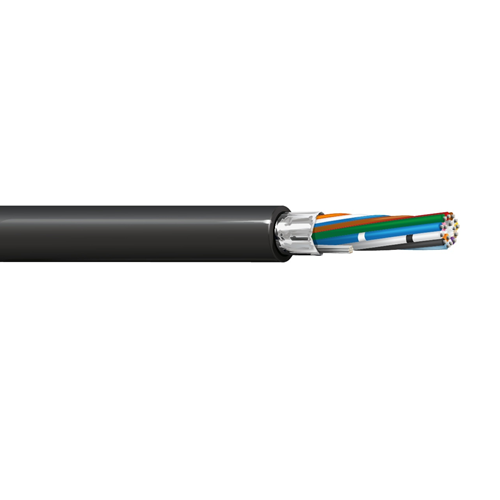

Belden 1214A Cable 26 AWG 16 Conductors Computers Instrumentation and Medical Elec Interconnect Multi Conductor Overall Shield Cable

Description:
• 26 AWG stranded (7x34) TC conductors, PVC insulation, Duofoil® shield (100% coverage), 26 AWG stranded TC drain wire, PVC jacket.

Insulation:
• Material: PVC - Polyvinyl Chloride
• Wall Thickness (mm): 0.381

Outer Shield Drain Wire AWG:
• AWG: 26
• Stranding: 7x34
• Material: TC - Tinned Copper

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.889

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +80°C
• Non-UL Temperature Rating: 80°C (UL AWM Style 2464)
• Bulk Cable Weight: 77.386 Kg/Km
• Max. Recommended Pulling Tension: 266.892 N
• Min. Bend Radius/Minor Axis: 76.200 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL2X
• AWM Specification: UL Style 2464 (300 V 80°C)
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 85.306
• Nominal Velocity of Propagation (VP %): 60
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 122.381
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 0.8 Amps/Conductor @ 25°C

Plenum/Non-Plenum:
• Plenum (Y/N): No
