Description:

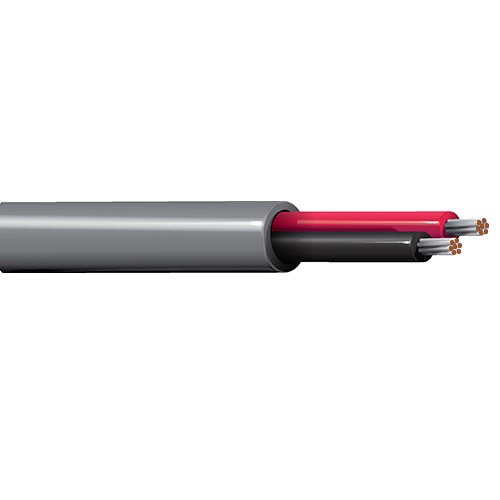

• 20 AWG stranded (7x28) TC conductors, conductors cabled, Tefzel® insulated, Tefzel jacket.

Insulation:
• Trade Name: Tefzel®
• Wall Thickness (mm): 0.381

Outer Jacket:
• Trade Name: Tefzel®
• Nom. Wall Thickness (mm): 0.508

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -60°C To +150°C
• Non-UL Temperature Rating: 150°C
• Bulk Cable Weight: 19 lbs/1000 ft.
• Max. Recommended Pulling Tension: 28 lbs.
• Min. Bend Radius/Minor Axis: 2 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Other Specification: NEMA HP3

Electrical Characteristics (Overall):
• Nom. Inductance (μH/ft): 0.186
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 9.3
• Max. Operating Voltage - Non-UL: 300 V RMS
• Max. Recommended Current: 4 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: VW-1

Plenum/Non-Plenum:
• Plenum (Y/N): No
