Description:

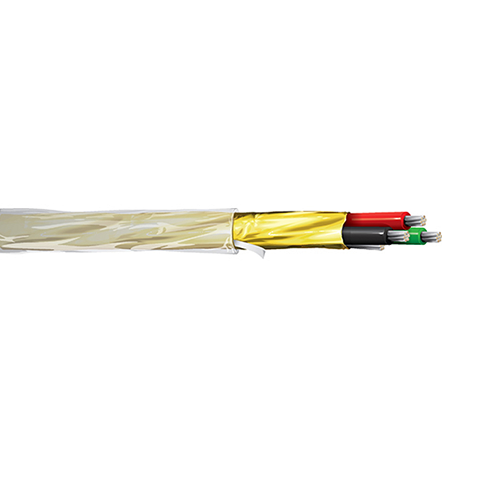

• 16 AWG stranded (19x29) TC conductors, conductors cabled, Tefzel® insulation, drain wire, overall Beldfoil® Aluminum-Kapton® Shield (100% coverage), Tefzel® jacket.

Insulation:
• Trade Name: Tefzel®
• Material: ETFE - Ethylene Tetrafluoroethylene
• Wall Thickness (mm): 0.3429

Outer Shield Drain Wire AWG:
• AWG: 18
• Stranding: Stranded
• Material: TC - Tinned Copper

Outer Jacket:
• Trade Name: Tefzel®
• Material: ETFE - Ethylene Tetrafluoroethylene
• Nom. Wall Thickness (mm): 0.508

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -60°C To +150°C
• Non-UL Temperature Rating: 150°C
• Bulk Cable Weight: 50.599 Kg/Km
• Max. Recommended Pulling Tension: 266.892 N

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Other Specification: NEMA HP3

Electrical Characteristics (Overall):
• Nom. Inductance (μH/m): 0.541365
• Nom. Capacitance Conductor to Conductor (pF/m): 144.364
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 259.199
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 14.0099
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 6.5 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: VW-1

Plenum/Non-Plenum:
• Plenum (Y/N): No
