Description:

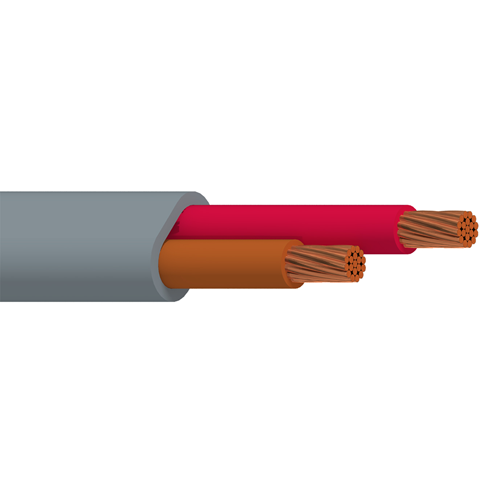

• 14 AWG stranded (19x27) bare copper conductors, conductors parallel, PVC insulation, PVC jacket.

Insulation:
• Material: PVC - Polyvinyl Chloride
• Wall Thickness (mm): 0.5842

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.5842

Mechanical Charactertistics (Overall):
• Operating Tempeature Range: -20°C To +75°C
• UL Temperature Rating: 75°C
• Bulk Cable Weight: 65.481 Kg/Km
• Max. Recommended Pulling Tension: 422.579 N
• Min. Bend Radius/Minor Axis: 44.450 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Max. Operating Voltage - Non-UL: 300 V RMS
• Max. Recommended Current: 8.5 Amps/Conductor @ 25°C

Plenum/Non-Plenum:
• Plenum (Y/N): No
