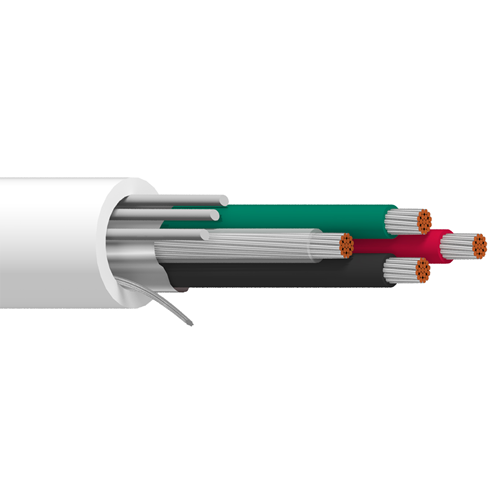

Belden 8729 Cable 22 AWG 4 Conductors Audio Control and Instrumentation Overall Beldfoil Shield Non Plenum PVC Jacket Cable
Select gauge from drop-down menu for prices:
- Belden Cable 22 AWG Audio Control and Instrumentation Overall Beldfoil Shield Non Plenum Cable
- Belden 9770 Cable 22 AWG 3 Conductors Audio Control and Instrumentation Overall Beldfoil Shield Non Plenum Cable
- Belden 8771 Cable 22 AWG 3 Conductors Audio Control and Instrumentation Overall Beldfoil Shield Non Plenum PVC Jacket Cable
Description:
• 22 AWG stranded (19x34) tinned copper conductors, conductors cabled, polyethylene insulation, overall Beldfoil® shield (100% Coverage), 23 AWG and 25 AWG drain wires, PVC jacket.
Insulation:
• Material: PE - Polyethylene
• Wall Thickness (mm): 0.4064
Outer Shield Drain Wire AWG:
• AWG: 23 and 25
• Stranding: Solid and 7x33
• Material: TCCS - Tinned Copper Covered Steel
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 1.2954
Mechanical Charactertistics (Overall):
• Operating Temperature Range: -40°C To +75°C
• UL Temperature Rating: 75°C (UL AWM Style 2094)
• Bulk Cable Weight: 63.993 Kg/Km
• Max. Recommended Pulling Tension: 444.820 N
• Min. Bend Radius/Minor Axis: 69.850 mm
Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL3, CM
• CEC/C(UL) Specification: CM
• AWM Specification: UL Style 2094 (300 V 75°C)
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 72.182
• Nom. Capacitance Cond. to Other Conductor & Shield (pF/m): 137.802
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 45.934
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 40.3563
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 2.3 Amps/Conductor @ 25°C
Flame Test:
• UL Flame Test: UL1685 UL Loading
Plenum/Non-Plenum:
• Plenum (Y/N): No
technical specification: | |
awg | 22 |
# conductors | 4 |
stranding | 19x34 |
no. of conductors | 4 |
conductor material | tinned copper |
outer shield - type | tape |
outer shield - material | aluminum foil-polyester tape |
overall cable- nominal dia. (mm) | 6.528 |
belden cable part number | 8729 |
