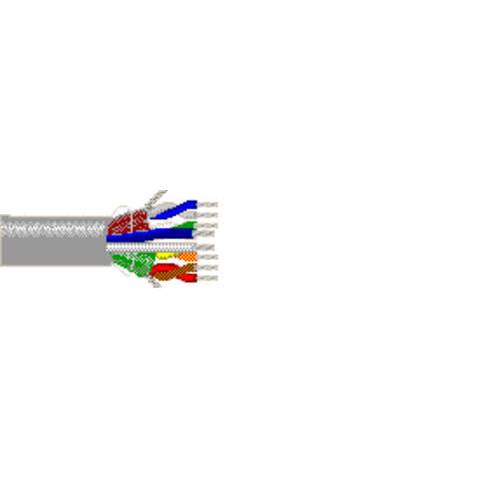

Belden 8787 Cable 24 and 22 AWG Special Audio Communication and Instrumentation Multi Conductor Overall Shield Cable
Select gauge from drop-down menu for prices:
- Belden Cable Special Audio Communication and Instrumentation Multi Conductor Overall Shield Cable
- Belden 8786 Cable 24 and 22 AWG Special Audio Communication and Instrumentation Overall Shield PVC Jacket Cable
- Belden 8788 Cable 22 AWG 5 Conductors Special Audio Communication and Instrumentation Multi Conductor Overall Shield Cable
- Belden 9772 Cable 22 AWG 12 Triads Special Audio Communication and Instrumentation Multi Conductor Overall Shield Cable
Description:
• 24 and 22 AWG stranded (7x32 and 7x30)) TC conductors, PVC insulation (22 AWG) / polyethylene insulation (24 AWG), cabled in quads, 24 AWG stranded TC drain wire, PVC jacket.
Insulation:
• Material: PE - Polyethylene (24 AWG) & PVC - Polyvinyl Chloride (22 AWG)
• Wall Thickness (mm): 0.3048 (24 AWG) & 0.381 (22 AWG)
• Insulation Resistance: 100 Megaohms/1000 ft. @ 500 V DC
Inner Shield Drain Wire AWG:
• AWG: 24
• Stranding: 7x32
• Material: TC - Tinned Copper
• Waterblocking Tape: Gray, White, Blue, Green; Brown, Red, Yellow, Orange; White, Blue
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.762
Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +80°C
• Non-UL Temperature Rating: 80°C
• Bulk Cable Weight: 45 lbs/1000 ft.
• Max. Recommended Pulling Tension: 62.200 lbs.
• Min. Bend Radius/Minor Axis: 3 in.
Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
Electrical Characteristics (Overall):
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 23.9 (24 AWG)
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 15 (22 AWG)
• Nom. Inner Shield DC Resistance @ 20°C (Ohm/1000 ft): 5
• Max. Operating Voltage - Non-UL: 350 V RMS
• Max. Recommended Current: 1.5 Amps/Conductor @ 25°C (24 AWG)
• Max. Recommended Current: 2.0 Amps/Conductor @ 25°C (22 AWG)
Flame Test:
• UL Flame Test: VW-1, UL1685 UL Loading
Plenum/Non-Plenum:
• Plenum (Y/N): No
technical specification: | |
awg | 24 and 22 |
# conductors | 8 and 2 |
stranding | 7x32 and 7x30 |
no. of conductors | 10 |
conductor material | tinned copper |
inner shield - type | tape |
inner shield - material | aluminum foil-polyester tape |
overall cable- nominal dia. (mm) | 8.762 |
belden cable part number | 8787 |
