Description:

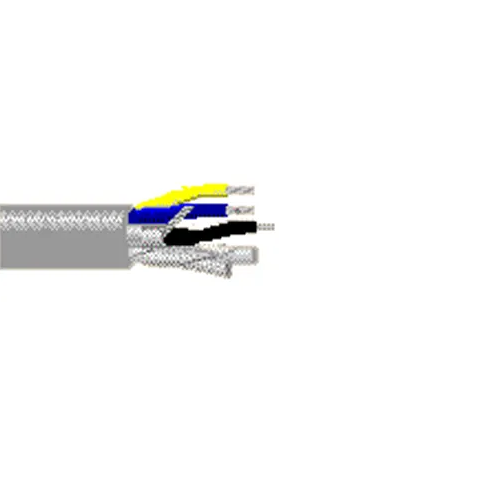

• 22 AWG stranded (7x30)) TC conductors, PVC insulation, (3) conductors cabled and separately Beldfoil® Shielded (100% Coverage) with drain wires, PVC jacket.

Insulation:
• Material: PVC - Polyvinyl Chloride
• Insulation Resistance: 100 Megaohms/1000 ft. @ 500 V DC

Inner Shield Drain Wire AWG:
• AWG: 29
• Stranding: Solid
• Material: TCB - Tinned Cadmium Bronze
• Filling Compound: Non-hygroscopic

Outer Shield:
• Material: UnShielded

Outer Jacket:
• Material: PVC - Polyvinyl Chloride

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +60°C
• Non-UL Temperature Rating: 60°C
• Bulk Cable Weight: 46.134 Kg/Km
• Max. Recommended Pulling Tension: 202.393 N
• Min. Bend Radius/Minor Axis: 63.500 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CM
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 111.554
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 49.215
• Nom. Inner Shield DC Resistance @ 20°C (Ohm/km): 124.678
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 2.1 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: UL1685 UL Loading, VW-1
