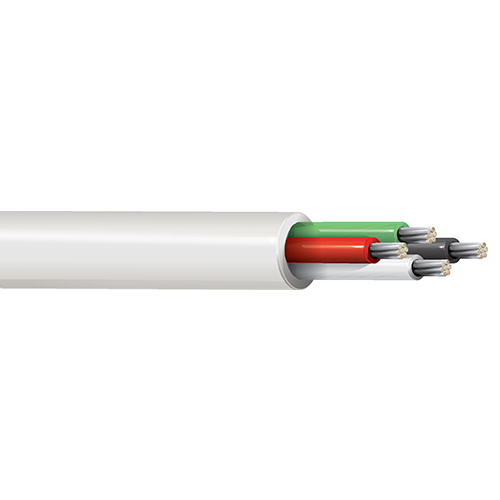

Belden 88489 Cable 18 AWG 4 Conductors Audio Control and Instrumentation Multi Conductor Stranded 19x30 Plenum FEP Jacket Cable

Belden 88489 Cable 18 AWG 4 Conductors Audio Control and Instrumentation Multi Conductor Stranded 19x30 Plenum FEP Jacket Cable

Regular price $8.84 Sale /per Foot

Belden 88489 Cable 18 AWG 4 Conductors Audio Control and Instrumentation Multi Conductor Stranded 19x30 Plenum FEP Jacket Cable

Description:
• 18 AWG stranded (19x30) TC conductors, conductors cabled, plenum, FEP insulation, FEP jacket.

Insulation:
• Material: FEP - Fluorinated Ethylene Propylene
• Wall Thickness (mm): 0.1778

Outer Jacket:
• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Wall Thickness (mm): 0.2286

Mechanical Charactertistics (Overall):
• Operating Tempeature Range: -70°C To +200°C
• Bulk Cable Weight: 41.670 Kg/Km
• Max. Recommended Pulling Tension: 444.820 N
• Min. Bend Radius/Minor Axis: 44.450 mm

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• NEC/(UL) Specification: CL3P, CMP
• CEC/C(UL) Specification: CMP
• AWM Specification: UL Style 2598 (300 V 60°C)
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Conductor (pF/m): 68.901
• Nom. Conductor DC Resistance @ 20°C (Ohm/km): 20.9984
• Max. Operating Voltage - UL: 300 V RMS
• Max. Recommended Current: 7.2 Amps/Conductor @ 25°C

Flame Test:
• UL Flame Test: NFPA 262
• CSA Flame Test: FT6

Suitability:
• Suitability - Outdoor: Yes
• Suitability - Burial: Yes

Plenum/Non-Plenum:
• Plenum (Y/N): Yes
• Non-Plenum Number: 8489

technical specification:
awg 18
# conductors 4
stranding 19x30
no. of conductors 4
conductor material tinned copper
outer shield - material unshielded
overall cable- nominal dia. (mm) 3.962
belden cable part number 88489
