Description:

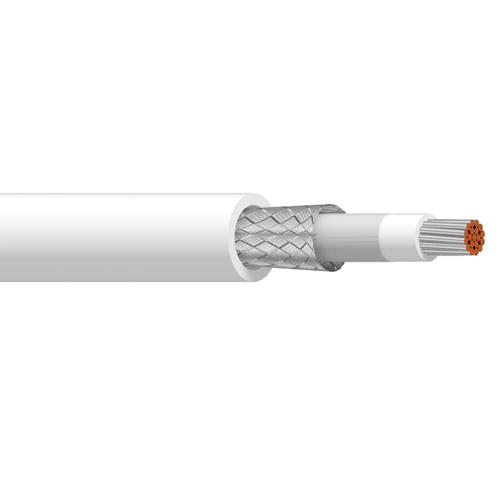

• 20 AWG stranded (19x32) tinned copper conductors, nylon skin over insulation, PVC insulation, tinned copper braid shield (90% coverage), PVC jacket.

Insulation:
• Material: PVC - Polyvinyl Chloride & Nylon
• Wall Thickness (mm): 0.2794 and 0.0762
• Insulation Resistance: 500 megohms/1000 ft. @ 500 VDC

Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Wall Thickness (mm): 0.254

Mechanical Charactertistics (Overall):
• Operating Temperature Range: -20°C To +105°C
• UL Temperature Rating: 105°C
• Bulk Cable Weight: 8 lbs/1000 ft.
• Max. Recommended Pulling Tension: 15 lbs.
• Min. Bend Radius/Minor Axis: 1.250 in.

Applicable Specifications and Agency Compliance (Overall):
Applicable Standards and Environmental Programs:
• EU Directive 2011/65/EU (ROHS II): Yes
• EU CE Mark: Yes
• EU Directive 2000/53/EC (ELV): Yes
• EU Directive 2002/95/EC (RoHS): Yes
• EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
• EU Directive 2002/96/EC (WEEE): Yes
• EU Directive 2003/11/EC (BFR): Yes
• CA Prop 65 (CJ for Wire and Cable): Yes
• MII Order #39 (China RoHS): Yes
• Military Specification: MIL-W-16878E/17 (insulated conductor)
• Other Specification: NEMA HP3

Electrical Characteristics (Overall):
• Nom. Capacitance Conductor to Shield (pF/ft): 103
• Nom. Conductor DC Resistance @ 20°C (Ohm/1000 ft): 8.9
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 7.5
• Max. Operating Voltage - Non-UL: 600 V RMS
• Max. Recommended Current: 3.8 Amps/Conductor @ 25°C

Plenum/Non-Plenum:
• Plenum (Y/N): No
