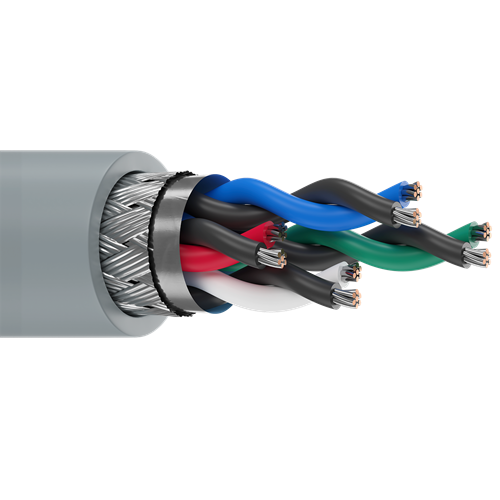

Belden 8304 Cable 22 AWG 4 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 59 lbs/1000 ft.
• Max. Recommended Pulling Tension: 102 lbs.
• Min. Bend Radius/Minor Axis: 3.250 in.
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 4.9
• Max. Recommended Current: 2.1 Amps/Conductor @ 25°C
| technical specification: | |
| awg | 22 |
| # pairs | 4 |
| stranding | 7x30 |
| no. of conductors | 8 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 8.128 |
| belden cable part number | 8304 |
