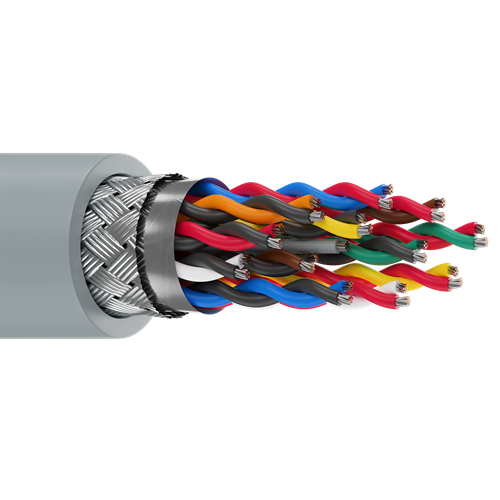

Belden 8312 Cable 22 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable

Belden 8312 Cable 22 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable

Min Length: 25 FT

Select gauge from drop-down menu for prices:

Belden 8312 Cable 22 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable

Regular price $15.90 $11.33 Sale /per Foot

Belden 8312 Cable 22 AWG 12 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable

Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 129 lbs/1000 ft.
• Min. Bend Radius/Minor Axis: 4.750 in.

Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 4.2

technical specification:
awg 22
# pairs 12
stranding 7x30
no. of conductors 25
conductor material tinned copper
outer shield - type tape
outer shield - material aluminum foil-polyester tape
overall cable- nominal dia. (mm) 11.557
belden cable part number 8312
