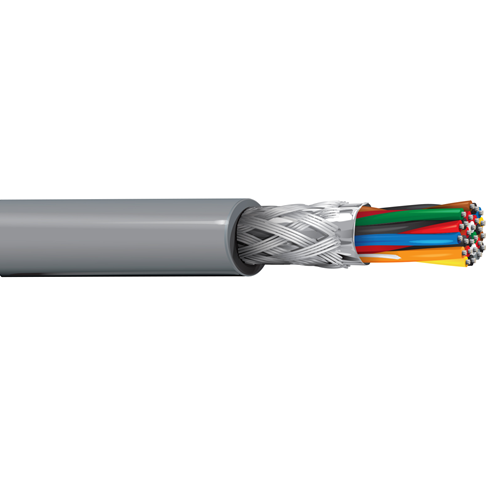

Belden 8318 Cable 22 AWG 18 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Belden 8318 Cable 22 AWG 18 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
SKU: SKU:
Select a gauge:
- Belden 8318 Cable 22 AWG 18 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
- Belden 8318 Cable 22 AWG 18 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 8318 Cable 22 AWG 18 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Outer Jacket:
• Nom. Wall Thickness (mm): 1.143
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 254.482 Kg/Km
• Max. Recommended Pulling Tension: 1690.316 N
• Min. Bend Radius/Minor Axis: 139.700 mm
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/km): 9.843
• Max. Operating Voltage - UL: 300 V RMS (UL AWM Style 2464)
• Max. Recommended Current: 1.4 Amps/Conductor @ 25°C
Flame Test:
• UL Flame Test: UL1685 FT4 Loading
| technical specification: | |
| awg | 22 |
| # pairs | 18 |
| stranding | 7x30 |
| no. of conductors | 36 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 13.716 |
| belden cable part number | 8318 |
