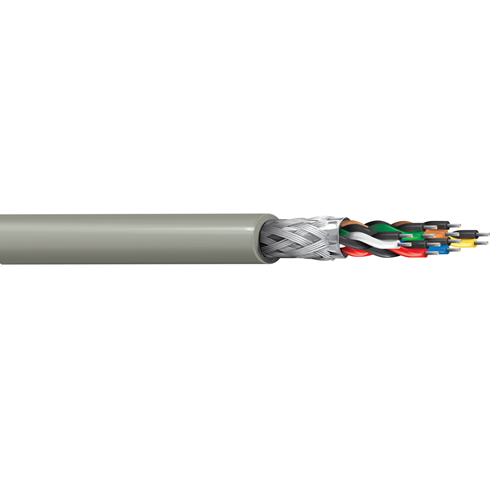

Belden 8336 Cable 24 AWG 6 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Mechanical Charactertistics (Overall):
• Non-UL Temperature Rating: 80°C (UL AWM Style 2464)
• Bulk Cable Weight: 57 lbs/1000 ft.
• Max. Recommended Pulling Tension: 95 lbs.
• Min. Bend Radius/Minor Axis: 3.250 in.
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 4.7
Flame Test:
• C(UL) Flame Test: FT4
| technical specification: | |
| awg | 24 |
| # pairs | 6 |
| stranding | 7x32 |
| no. of conductors | 12 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 7.874 |
| belden cable part number | 8336 |
