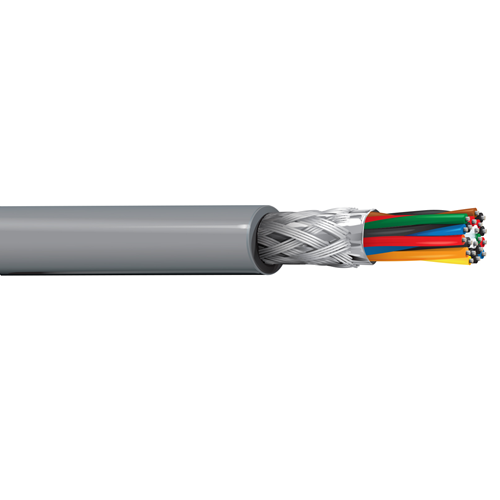

Belden 8340 Cable 24 AWG 10 Pairs Overall Foil/Braid Shield Low Capacitance Computer Cables for EIA RS-232 Applications PVC Jacket Cable
Mechanical Charactertistics (Overall):
• Bulk Cable Weight: 81 lbs/1000 ft.
• Min. Bend Radius/Minor Axis: 4 in.
Electrical Characteristics (Overall):
• Nominal Outer Shield DC Resistance @ 20°C (Ohm/1000 ft): 3.5
• Max. Recommended Current: 1.1 Amps/Conductor @ 25°C
| technical specification: | |
| awg | 24 |
| # pairs | 10 |
| stranding | 7x32 |
| no. of conductors | 20 |
| conductor material | tinned copper |
| outer shield - type | tape |
| outer shield - material | aluminum foil-polyester tape |
| overall cable- nominal dia. (mm) | 9.779 |
| belden cable part number | 8340 |
